Alcatel-Lucent Alcatel-Lucent Certifications 4A0-101 Questions & Answers

• Question 11:

  The solicited node address for the destination node address of 2001:DB8::30A:216 4DFF:FE14:6CAE is:

  A. 2001::FF:FE:14:6CAE

  B. 2001::1:FF:14:6CAE

  C. FF02.DB8::30A:216:4DFF:FE14.6CAE

  D. FF02::1:FF14:6CAE

  Correct Answer: D

• Question 12:

  Which of the following best describes distance vector protocols?

  A. They periodically exchange copies of routing tables between adjacent routers and do not maintain any knowledge of links on non adjacent routers.

  B. They use shortest path first algorithms, do not exchange copies of routing tables between routers and do maintain knowledge of links on non adjacent routers.

  C. They periodically exchange copies of routing tables between adjacent routers and maintain knowledge of links on non adjacent routers.

  D. They use shortest path first algorithms, exchange copies of routing tables between routers and maintain knowledge of links on non adjacent routers.

  Correct Answer: A

• Question 13:

  Click on the exhibit.



  OSPF router R2 has both point-to-point and broadcast interfaces and it is not a DR for any interfaces. Router R2 detects the link failure between itself and router R1.

  Which of the following is correct?

  A. Router R2 sends an update to 224.0.0.5 on its broadcast and point-to-point interfaces. The DR does not send any updates.

  B. Router R2 sends an update to 244.0.0.5 on its point-to-point interfaces. The DR sends an update to

  224.0.0.6 on the broadcast network.

  C. Router R2 sends an update to 224.0.0.5 out its point-to-point interfaces and an update to 224.0.0.6 out its broadcast interface. The DR sends updates to 224.0.0.5 on the broadcast network.

  D. Router R2 sends an update to 224.0.0.6 out its point-to-point interfaces and an update to 224.0.0.5 out its broadcast interface. The DR sends an update to 224.0.0.6 on the broadcast networks.

  Correct Answer: C

• Question 14:

  What are the three databases that are maintained by a link-state protocol?

  A. Neighbor, adjacency, routing.

  B. Neighbor, topology, forwarding.

  C. Topology, routing, forwarding.

  D. Topology, forwarding, traffic classification.

  E. Neighbor, adjacency, forwarding.

  Correct Answer: B

• Question 15:

  Which of the following regarding IS-IS DIS is FALSE?

  A. L1 and L2 routers elect separate DIS's.

  B. DIS uses a specific Ethernet multicast address to communicate with other routers on the broadcast network.

  C. If a new router starts up in a LAN and has a higher interface priority, the new router preempts the original DIS and becomes the DIS.

  D. In broadcast multi-access networks, such as Ethernet, one router is elected as the DIS and a second router as the backup DIS.

  Correct Answer: D

• Question 16:



  A service provider is deploying a 6over4 tunnel to connect a customer's branch office IPv6 network to the corporate headquarters as shown in the exhibit. Which command is used to create a default route on PE2 for the branch office network?

  A. configure router static-route 0.0.0.0/0 indirect 10.10.10.2

  B. configure router static-route 0.0.0.0/0 indirect 2001:DB8:1:100::1

  C. configure router static-route ::/0 indirect 10.10.10.2

  D. configure router static-route::/0indirect2001:DB8:1:100::1

  E. configure outer static-route::/0indirect2001:DB8:1:101::1

  Correct Answer: C

• Question 17:

  An Alcatel-Lucent 7750 SR has a port with the MAC address of 00;03:FA:AC:77: AF. The port is bound to an interface. If IPv6 is then enabled on that interface .what will the link-local address be?

  A. FE80::203:FAFF:FEAC:77AF/64

  B. 2000::203:FAFFFEAC:77AF/64

  C. FE80::3FAFF:FEAC:77AF/64

  D. FC00::203:FAFF:FEAC:77AF/64

  E. FC00::3:FAFF:FEAC:77AF/64

  Correct Answer: A

• Question 18:

  Which of the following are major features of OSPF? (Choose 2.)

  A. Fast reroute capability.

  B. Control traffic prioritization.

  C. Route redistribution.

  D. Traffic engineering extensions.

  E. Cut through forwarding.

  Correct Answer: CD

• Question 19:

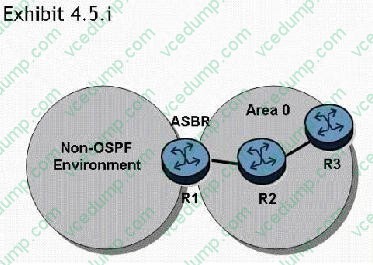

  Click on the exhibit.



  In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding Type 5 LSA generation is TRUE?

  A. Router R1 generates a Type 5 LSA that is flooded to area 1 only.

  B. Router R1 generates a Type 5 LSA that is flooded to areas 1 and 0. Router R6 generates a Type 5 LSA that is flooded to area 2.

  C. Router R1 generates a Type 5 LSA that is flooded to areas 0.1, and 2.

  D. Router R3 generates a Type 5 LSA that is flooded to areas 0 and 2

  E. Type 5 LSAs are not generated in this network topology.

  Correct Answer: C

• Question 20:

  What event causes an OSPF adjacency to change from 'down' to 'two way'?

  A. The router receives a link-state update in response to a link-state request.

  B. The router receives a Hello packet from its neighbor that contains its own router ID in the neighbor list.

  C. The router receives a database description packet from its neighbor.

  D. The router receives a link-state acknowledgement in response to a link-state update

  Correct Answer: B
