VMware VCP6-CMA, VCP6-DCV, VCP6-DTM, VCP6-NV 2V0-620 Questions & Answers

• Question 21:

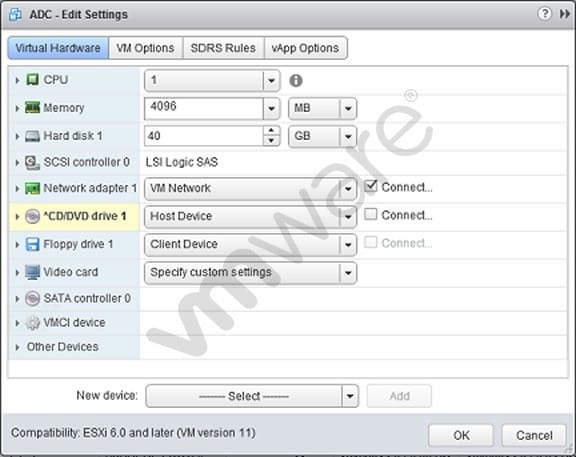

  Refer to the Exhibit.



  An administrator is installing Windows into a virtual machine. The DVD has been mounted on the Host and configured for the virtual machine as shown in the Exhibit.

  Based on the exhibit, when the virtual machine is booted, why would it attempt to search for a PXE server?

  A. The CD/DVD device is not connected.

  B. The ISO is in the incorrect storage location.

  C. The OS minimum requirements have not been met.

  D. The CD/DVD device is not set to Client Device.

  Correct Answer: A

  It looks like the CD/DVD device is not connected. Restart the machine and recheck again. When the system doesn't find CD/DVD drive, it looks for PXE server to boot.

• Question 22:

  Refer to the Exhibit.



  An administrator is migrating a powered-on virtual machine, as shown in the exhibit. Which option should be selected to perform a Storage vMotion of the VM?

  A. Change storage only

  B. Change VM compute resource only

  C. Change both compute resource and storage, changing the compute resource first.

  D. Change both compute resource and storage, changing the storage resource first.

  Correct Answer: A

• Question 23:

  Refer to the Exhibit.



  An administrator is viewing network connectivity for a new virtual machine, as shown in the Exhibit.

  Based on the Exhibit, what will occur with the network traffic of this virtual machine when communicating externally from vSwitch1?

  A. The virtual machine will communicate on both uplinks

  B. The virtual machine will only communicate on vmnic1

  C. The virtual machine will only communicate on vmnic2

  D. The virtual machine will fail to communicate externally

  Correct Answer: D

  The virtual machine will fail to communicate externally because it seems that the connection to the physical adapters is not right.

• Question 24:

  Refer to the Exhibit.



  An administrator has configured a host profile so that ESXi 6.x hosts will point to the corporate NTP server for time synchronization. The NTP server is located at 10.0.30.213, but time has not been synchronized properly across the ESXi hosts.

  The administrator reviews Host Profile settings as shown in the Exhibit.

  Which two steps are required to resolve the issue? (Choose two.)

  A. Correct the NTP server IP address.

  B. Check the host for host profile compliance.

  C. Remediate the host based on the updated host profile.

  D. Change the NTP server to the FQDN as IP Addresses are not supported.

  Correct Answer: AC

  To resolve the issue, correct the NTP server IP address (it doesn't look right), and remediate the host based on the updated host profile.

• Question 25:

  Refer to the Exhibit.



  An administrator is configuring an ESXi 6.x host to use multiple NICs to resolve a management network redundancy error. After configuring a second NIC, the server is not able to communicate when the primary connection is taken down. The administrator analyzes the Exhibit shown here.

  Based on the exhibit, what is the likely cause of the issue?

  A. vmnic4 is not attached to a vSwitch.

  B. vmnic2 is not connected to a physical switch.

  C. E1000 is the incorrect NIC Driver for this card.

  D. There is a MAC address conflict on the network.

  Correct Answer: B

  The exhibit clearly shows that the vmnic2 is not connected to the physical switch that is why it is showing the down warning.

• Question 26:

  Refer to the Exhibit.



  A storage administrator has reported that full utilization of all bandwidth from an ESXi 6.x host is not being seen. In troubleshooting the issue, the Adapter details are shown in the Exhibit.

  Based on the exhibit, what is cause of the issue?

  A. The array is not setup to use the correct multipathing policy.

  B. There are no virtual machines on the ESXi host.

  C. Not all links are used because a path is disabled.

  D. Another path needs to be configured.

  Correct Answer: C

  The cause might be that not all links are used because a path is disabled as you can see in the third row.

• Question 27:

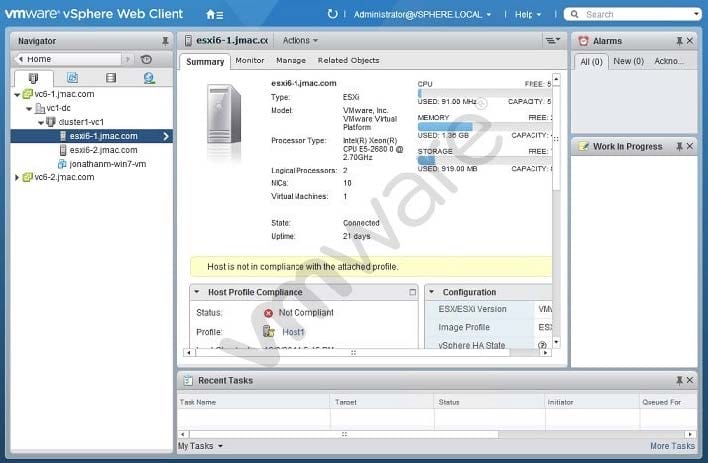

  Refer to the Exhibit.



  An administrator logs into the vSphere Web Client and sees the warning shown in the Exhibit. During a change control window, the warning was addressed.

  What should be done to verify that the host is no longer showing the warning?

  A. Run a Remediate host operation.

  B. Recheck the compliance of the host.

  C. Restart the host to get rid of the warning.

  D. Install VMware tools to clear the warning.

  Correct Answer: B

  To make sure the host is no longer showing the warning, recheck the compliance of the host.

• Question 28:

  After selecting an object in vRealize Operations, how can a user compare the badge values of related child objects?

  A. Use the Scoreboard tab

  B. Use the Relationship tab

  C. Use the Members tab D. Use the Overview tab

  Correct Answer: A

  Use scoreboard tab to compare the badge values of related child objects. Reference: http://blogs.vmware.com/management/2014/08/david-davis-vcenter-operations-post-14capacity-analysis-virtual-machines.html

• Question 29:

  A user wants to monitor a business-critical virtual machine to ensure that it doesn't run out of resources.

  What metric could be monitored in vRealize Operations to address this concern?

  A. Time Remaining badge

  B. Compliance badge

  C. Reclaimable Waste badge

  D. Density badge

  Correct Answer: A

  You need to monitor time remaining badge to ensure virtual machine doesn't run out of resources. Reference: http://blogs.vmware.com/tam/files/2015/02/vRealize-Operations-5.8-Guide1.pdf

• Question 30:

  Which two badges are major badges in vRealize Operations? (Choose two.)

  A. Risk

  B. Efficiency

  C. Workload

  D. Faults

  Correct Answer: AB

  vC Ops has 3 major badges and their status depends on the minor badges whose scores get rolled up to make up the major badges. Those 3 major badges are Health, Risk, and Efficiency. Each of these 3 badges are weighted combinations of minor badges. Thus, the major badges are the color and numerical score that they are because of the status of the minor badges that they are summarizing.

  Reference: http://blogs.vmware.com/management/2014/04/david-davis-on-vcenter-operations-post-8understanding-vcenter-operations-badges.html
