Question 1

Single choice

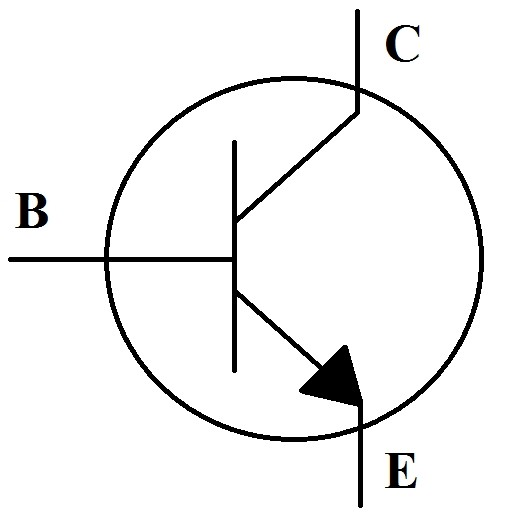

This symbol represents what electronic circuit component?

1. A

   power source

2. B

   load

3. C

   transistor

4. D

   conductor

Reveal answer details Close answer details

Correct answerC

Question 2

Single choice

The outer shell of an atom is known as the ___________.

1. A

   suborbital shell

2. B

   valence shell

3. C

   final shell

4. D

   core shell

Reveal answer details Close answer details

Correct answerB

Question 3

Single choice

Carbon has 6 protons and 6 neutrons in its nucleus.

How many electrons does it have?

1. A

   0

2. B

   24

3. C

   6

4. D

   12

Reveal answer details Close answer details

Correct answerC

Question 4

Single choice

If a 120-volt current is protected by a 25-amp circuit breaker, what's the largest number of watts an appliance can safely use?

1. A

   1,200 watts

2. B

   1,800 watts

3. C

   3,000 watts

4. D

   3,600 watts

Reveal answer details Close answer details

Correct answerC

Question 5

Single choice

The symbol above is a/an __________.

1. A

   lamp

2. B

   fuse

3. C

   inductor

4. D

   bell

Reveal answer details Close answer details

Correct answerA

Question 6

Single choice

In an electrical circuit, if one wanted to reduce the current and/or divide the voltage, one would use a
___________.

1. A

   rectifier

2. B

   reducer

3. C

   reflector

4. D

   resistor

Reveal answer details Close answer details

Correct answerD

Question 7

Single choice

Two 8-ohm speakers are connected in parallel to an amplifier with a 24-volt output.

What is the voltage across each speaker?

1. A

   6 volts

2. B

   12 volts

3. C

   18 volts

4. D

   24 volts

Reveal answer details Close answer details

Correct answerD

Question 8

Single choice

The symbol in the given diagram represents a ___________.

1. A

   transducer

2. B

   resistor

3. C

   power source

4. D

   capacitor

Reveal answer details Close answer details

Correct answerD

Question 9

Single choice

What effect does a speaker wire's gauge have on speaker sound quality?

1. A

   higher gauge wires are thicker with better sound quality

2. B

   lower gauge wires are thicker with better sound quality

3. C

   lower gauge wires are thicker with lesser sound quality

4. D

   hire gauge wires are thicker with lesser sound quality

Reveal answer details Close answer details

Correct answerB

Question 10

Single choice

Impedance is represented by the symbol __________.

1. A

   XL

2. B

   R

3. C

   XC

4. D

   Z

Reveal answer details Close answer details

Correct answerD

Question 11

Single choice

The hot wire is always __________.

1. A

   blue

2. B

   green

3. C

   whitish

4. D

   black

Reveal answer details Close answer details

Correct answerD

Question 12

Single choice

Newer cell phones contain a removable memory card, which is often called a __________.

1. A

   SIM card

2. B

   DIM chip

3. C

   PIN card

4. D

   Pin chip

Reveal answer details Close answer details

Correct answerA

Question 13

Single choice

Electricians use the term low potential to refer to __________.

1. A

   electrical circuits with a low potential for overload

2. B

   building codes that reduce the risk of fire

3. C

   the likelihood of getting a raise this year

4. D

   600 watts or less

Reveal answer details Close answer details

Correct answerD

Question 14

Single choice

The electronic symbol shown below represents a(n) __________.

1. A

   Capacitor

2. B

   Transistor

3. C

   Inductor

4. D

   Diode

Reveal answer details Close answer details

Correct answerD

Question 15

Single choice

A 120 V light bulb is rated for 40 watts.

What is the light bulb's current rating?

1. A

   3 A

2. B

   1/3 A

3. C

   2 A

4. D

   1 A

Reveal answer details Close answer details

Correct answerB

Question 16

Single choice

In residential wiring, the internal grounds will be connected to an external ground, also known as
___________.

1. A

   extra ground

2. B

   Earth ground

3. C

   safe ground

4. D

   dirt ground

Reveal answer details Close answer details

Correct answerB

Question 17

Single choice

To control a light fixture from two different wall switches, you should use __________.

1. A

   a single-pole switch and a four-way switch

2. B

   two three-way switches

3. C

   two four-way switches

4. D

   two single-pole switches

Reveal answer details Close answer details

Correct answerB

Question 18

Single choice

Components of an electrical circuit that resist a change in the flow of current are known as ___________.

1. A

   self-inducing agents

2. B

   selfers

3. C

   inductors

4. D

   inducers

Reveal answer details Close answer details

Correct answerC

Question 19

Single choice

A crystal microphone uses __________.

1. A

   the piezoelectric effect

2. B

   the Doppler effect

3. C

   magnetic wavicles to operate

4. D

   a permanent magnet for resonance

Reveal answer details Close answer details

Correct answerA

Question 20

Single choice

When a circuit breaker trips, in what position will you find the operating handle?

1. A

   on position

2. B

   off position

3. C

   half way between on and off

4. D

   three-fourths of the way between the on position and the off position

Reveal answer details Close answer details

Correct answerC

Question 21

Single choice

Printed circuit boards are typically made out of __________.

1. A

   laminated paper

2. B

   fiberglass

3. C

   copper

4. D

   glass

Reveal answer details Close answer details

Correct answerB

Question 22

Single choice

How many paths of electrical flow can be found in a series circuit?

1. A

   one

2. B

   two

3. C

   two or more

4. D

   It can't be determined from the information given.

Reveal answer details Close answer details

Correct answerA

Question 23

Single choice

Most 12 V car battery are made up of six individual cells connected in series.

What is the voltage of each cell in a car battery?

1. A

   2 V

2. B

   3.5 V

3. C

   6 V

4. D

   12 V

Reveal answer details Close answer details

Correct answerA

Question 24

Single choice

A 9-volt transistor contains __________.

1. A

   1 cell

2. B

   6 cells

3. C

   9 cells

4. D

   3 cells

Reveal answer details Close answer details

Correct answerB

Question 25

Single choice

Electron flow is from __________.

1. A

   + to +

2. B

   - to +

3. C

   + to -

4. D

   - to -

Reveal answer details Close answer details

Correct answerB

Question 26

Single choice

How many volts does it take to send 99 amps of current through 99,000 ohms of resistance?

1. A

   0.009801 volts

2. B

   980.1 megavolts

3. C

   9.801 megavolts

4. D

   98.01 volts

Reveal answer details Close answer details

Correct answerC

Question 27

Single choice

An oscilloscope is typically used to analyze __________.

1. A

   resistance

2. B

   power in a circuit

3. C

   complex waveforms

4. D

   simple circuits

Reveal answer details Close answer details

Correct answerC

Question 28

Single choice

Two 16 ohm speakers are connected in parallel to an amplifier that provides a 32 volt output.

The voltage across each speaker is __________.

1. A

   2 volts

2. B

   16 volts

3. C

   64 volts

4. D

   32 volts

Reveal answer details Close answer details

Correct answerD
