Free ASQ-CQE Exam Dumps Preview

An effective design review ensures that the design meets certain established criteria and standards. This helps in objectively evaluating the design to find any discrepancies or improvements needed. The other options are not necessarily true for every effective design review:

A: Design reviews can occur at various stages, not just when the design is complete.
B: While brainstorming might be part of the process, an effective review should have structure and defined criteria.
D: The review can involve multiple stakeholders, not just the development team.

A control chart is used to communicate performance data in a time sequence. It displays data points over time, allowing for the analysis of trends, shifts, and variations in the process. This tool is effective for monitoring process stability and performance.
References:
"Statistical Quality Control" by Eugene
L. Grant and Richard
S. Leavenworth, which details the use of control charts in quality control processes.

Standardized work involves documenting and following the best practices for performing tasks on the production line.

Job aids that outline step-by-step instructions ensure consistency and quality in task performance.

This practice helps in maintaining uniformity and reducing variability in the production process.

References:
Lean manufacturing literature, such as "The Lean Manufacturing Pocket Handbook,"
describes standardized work as a core principle for ensuring efficiency and quality.

When nonconforming items are found, the first action should be to identify and label them clearly. This prevents further processing or use and ensures proper handling of these items. Identification is critical before taking any further actions such as retesting, destruction, or returning to the supplier.
References:
ISO 9001:2015, Clause 8.7 - Control of Nonconforming Outputs, which specifies the need for clear identification and segregation of nonconforming products.

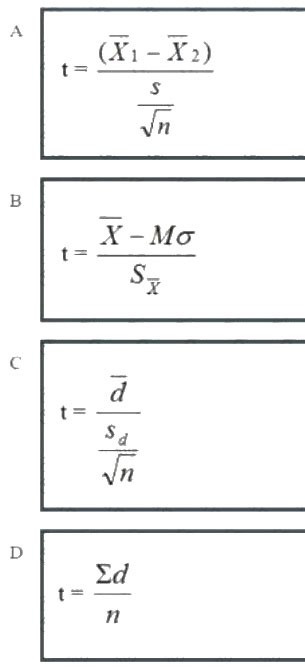

The correct test statistic for a paired-sample t test is used when comparing the means of two related groups.
The formula for the paired-sample t test is:

t=dsd/nt = \frac{\bar{d}}{s_d / \sqrt{n}}t=sd/nd

Where:
d\bar{d}d is the mean of the differences between the paired observations.
sds_dsd is the standard deviation of the differences. nnn is the number of pairs.

Control charts are primarily used to monitor process behavior and provide a common language fordiscussing process performance. They help in identifying variation within a process and distinguishing between common cause and special cause variations. While they can suggest areas for further investigation, their primary role is not to identify root causes or decide which products to inspect.
References:
"Quality Control" by Dale H. Besterfield, which details the use and purpose of control charts in
process improvement.

Precision refers to the consistency of repeated measurements. The data set 0.055, 0.052, 0.054, 0.056 shows the greatest precision as the values are closely grouped together, indicating a high degree of repeatability and low variability.

The client, or the party commissioning the audit, has the primary responsibility for defining the purpose and scope of the audit.

The client sets the objectives, scope, and criteria to ensure the audit meets their specific needs and requirements.

The audit manager and auditor may assist in refining the scope and purpose but the initial determination lies with the client.

References:
The ASQ "Auditing Handbook" and ISO 19011:2018 guidelines on auditing management
systems outline the client's role in defining audit scope and objectives.

A scatter diagram is used to assess the relationship between two variables. In this case, it can be used to analyze the relationship between storage temperature and the overall length of the metalcomponent. A scatter diagram helps in visualizing any correlation between the two variables.
References:
"The Quality Toolbox" by Nancy R. Tague, which provides descriptions and uses for various quality tools including scatter diagrams.

The correction for the CMM is determined by the difference between the measured mean and the standard value.

The necessary correction is calculated as follows:Correction=Standard ValueMeasured Mean\text
{Correction} = \text{Standard Value} - \text{Measured Mean}Correction=Standard ValueMeasured
MeanCorrection=100.00107.88=7.88 mm\text{Correction} = 100.00 - 107.88 = -7.88 \text{ mm}
Correction=100.00107.88=7.88 mm

The correction should be applied in such a way to adjust the measurements to the standard value.

Risk describes the combination of the severity and probability of occurrence of harm. In the context of quality management, risk assessment involves evaluating both how severe the potential harm could be and the likelihood of it occurring, to manage and mitigate potential failures effectively.

References:
Failure Mode and Effect Analysis (FMEA) by ASQ Quality Press.
ISO 31000: Risk Management Guidelines.

In written communication, using the active voice is most effective because it is clear and direct. Active voice makes it easier for the reader to understand who is doing what, leading to less ambiguity. For example, "The manager approved the request" is clearer than "The request was approved by the manager." Reference: "The Elements of Style" by Strunk and White, which advises using active voice for clarity and precision in writing.

When a potential solution, such as adding reinforcements to packaging, is identified, the most appropriate action is to pilot the solution. Piloting allows the company to test the effectiveness of the solution on a smaller scale before full implementation, ensuring that it resolves the issue without unintended consequences.

When several units from a random sample are found to be defective, the immediate next action should be to segregate the defective units. This step is crucial to prevent defective units from being mixed with non-defective units, ensuring that they do not reach customers or proceed further in the production process.
Segregating defective units helps in identifying the extent of the issue and facilitates further investigation and corrective actions.

The expected number of rejects per sample can be calculated using the reject rate and the sample size.
Given a reject rate of 6% (or 0.06) and a sample size of 5:

Expected number of rejects per sample = 0.06 * 5 = 0.3

References:
Montgomery, D.C. (2009). Introduction to Statistical Quality Control. Wiley. ASQ. (n.d.). Basic Quality Tools. Retrieved from (https://asq.org/quality-resources/basic-quality-tools)

The Plan-Do-Check-Act (PDCA) cycle specifies the use of a feedback cycle. It is a continuous loop of planning, doing, checking, and acting, aimed at continuous improvement and problem-solving in quality management.

Design Failure Mode and Effects Analysis (DFMEA) is a systematic method for evaluating a design to identify potential failure modes, their causes, and effects, and to prioritize the actions to mitigate these failures.

Identify Personnel Responsible for Implementation: While important for action plans, it is not the primary focus of DFMEA.

Predict Failure Frequencies:
DFMEA does consider failure frequencies, but the primary goal is to address and mitigate failures.

Minimize Measurement Variation:
This is more relevant to process control and not the primary focus of DFMEA.

Mitigate Failure Modes:
The main objective of DFMEA is to identify potential failure modes and implement actions to reduce or eliminate the risks associated with these failures. This involves analyzing the design to foresee where it might fail and taking preventive measures to improve reliability and safety.

References:
Quality engineering and risk management texts, specifically those discussing the principles
and objectives of DFMEA.

Process capability analysis evaluates how well a process can produce output within specified limits.

It measures the inherent variability of a process relative to its specification limits.

This analysis is valuable for comparing the capabilities of different processes or equipment to ensure they meet required specifications.

It helps in selecting the most appropriate process or equipment by providing quantitative data on their performance.

References:
ASQ's "Certified Quality Engineer Handbook" outlines the use of process capability analysis
for comparing processes and equipment.

ANSI ASQ Z1.4 provides sampling procedures and tables for inspection by attributes.

The sample size for Level II inspection is determined based on the lot size to be inspected.

This standard specifies how to choose sample sizes and acceptance numbers based on lot size to ensure statistically valid sampling.

References:
ANSI/ASQ Z1.4-2008 "Sampling Procedures and Tables for Inspection by Attributes" explains
how sample sizes are derived from lot sizes.

A control chart is used to communicate performance data in a time sequence. It is designed to plot data points chronologically to identify trends, variations, and patterns over time, which is essential for process monitoring and improvement.
References:
"Introduction to Statistical Quality Control" by Douglas C.
Montgomery, which explains the application and interpretation of control charts in quality control.

Risk control involves making decisions using information about acceptable levels of risk. This process helps ensure that the risks associated with various activities are managed within tolerable limits, balancing the potential impact with the organization's risk appetite.

The effectiveness of corrective action can best be assessed by measuring the results of the corrective action. This involves evaluating whether the action taken has successfully addressed theroot cause of the problem and has led to a measurable improvement in the quality metrics or process performance.

References:
ASQ Quality Press: The Certified Quality Engineer Handbook.
Total Quality Management by Dale H. Besterfield.

The equation to calculate the upper control limit (UCL) for an average chart (X-bar chart) is X + D4 R.
Here, X is the process mean, D4 is a control chart constant that depends on the sample size, and R is the average range of the samples.
This formula helps in determining the upper threshold beyond which a process is considered out of control.

References:
"Introduction to Statistical Quality Control" by Douglas C. Montgomery, which provides detailed
explanations on control charts and their calculations.
