Question 1

Single choice

How does a Meraki device behave if cloud connectivity is temporarily lost?

A
The offline device continues to run with its last known configuration until cloud connectivity is restored.
B
The offline device reboots every 5 minutes until connection is restored.
C
The offline device stops passing traffic.
D
The offline device tries to form a connection with a local backup sever.

Reveal answer details Close answer details

Correct answerA

Explanation

References:
https://community.meraki.com/t5/Security-SD-WAN/Cloud-Services/td-p/43141

Question 2

Single choice

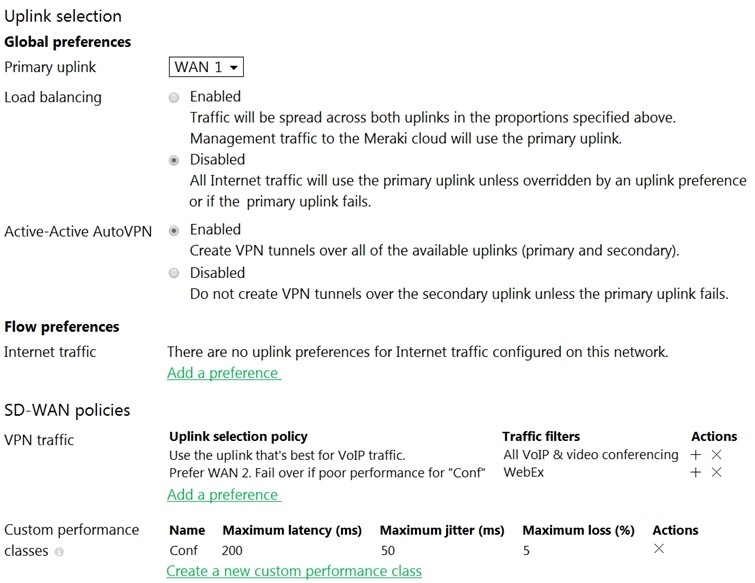

Refer to the exhibit.
Assuming this MX has established a full tunnel with its VPN peer, how will the MX route the WebEx traffic?

A
WebEx traffic will prefer WAN 2 as long as it meets the thresholds in the "Conf" performance class.
B
WebEx traffic will prefer WAN 1 as it is the primary uplink.
C
WebEx traffic will prefer WAN 2 as long as it is up.
D
WebEx traffic will be load-balanced between both active WAN links.

Reveal answer details Close answer details

Correct answerA

Question 3

Single choice

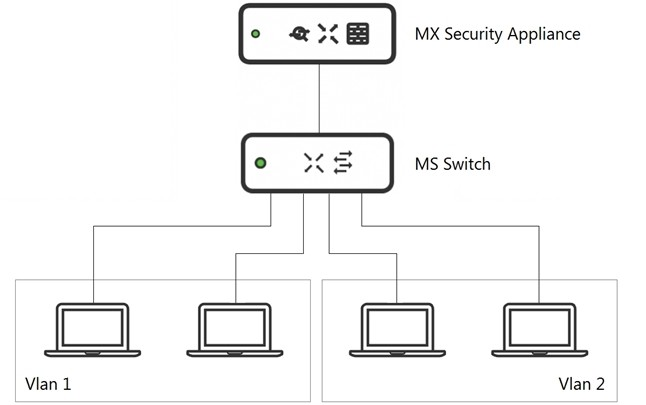

Refer to the exhibit.

What is an advantage of implementing inter-VLAN routing on an MX Security Appliance rather than performing inter-VLAN routing on an MS Series Switch?

A
The MX appliance performs IDS/IPS for inter-VLAN traffic.
B
The MX appliance performs AMP for inter-VLAN traffic.
C
The MX appliance performs data encryption for inter-VLAN traffic.
D
The MX appliance performs content filtering for inter-VLAN traffic.

Reveal answer details Close answer details

Correct answerA

Question 4

Single choice

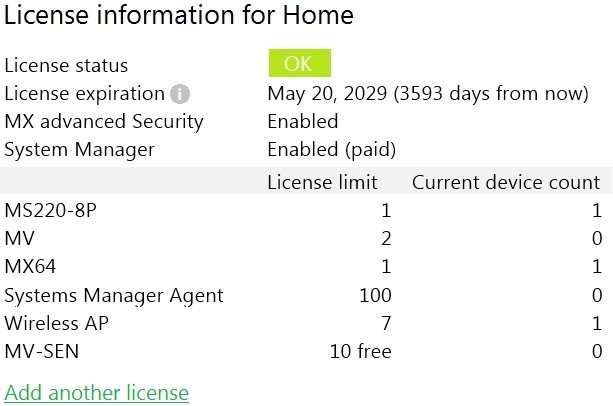

Refer to the exhibit. This Dashboard organization uses Co-Termination licensing model.

What happens when an additional seven APs are claimed on this network without adding licenses?

A
All APs immediately stop functioning.
B
All network devices stop functioning in 30 days.
C
One AP Immediately stops functioning.
D
All APs stop functioning in 30 days.

Reveal answer details Close answer details

Correct answerB

Question 5

Single choice

Which order is accurate for a firmware upgrade on MX appliances in a high-availability configuration?

A
starts on the secondary MX appliance and then occurs on the primary MX appliance
B
starts on both MX appliances at the same time and then reboots both appliances after traffic on the
primary MX appliance ceases
C
starts on both MX appliances at the same time and then immediately reboots both appliances
D
starts on the primary MX appliance and then occurs on the secondary MX appliance

Reveal answer details Close answer details

Correct answerD

Explanation

References:
https://community.meraki.com/t5/Security-SD-WAN/Firmware-Update-to-HA-unit/td-p/47865

Question 6

Multiple choice

Which three verbs of request are available in the Cisco Meraki API? (Choose three.)

A
SET
B
PUT
C
PATCH
D
ADD
E
POST
F
GET

Reveal answer details Close answer details

Correct answersB, E, F

Explanation

References:
https://documentation.meraki.com/General_Administration/Other_Topics/
Cisco_Meraki_Dashboard_API

Question 7

Multiple choice

What are two organization permission types? (Choose two.)

A
Full
B
Read-only
C
Monitor-only
D
Write
E
Write-only

Reveal answer details Close answer details

Correct answersA, B

Explanation

References:
https://documentation.meraki.com/General_Administration/Managing_Dashboard_Access/
Managing_Dashboard_Administrators_and_Permissions

Question 8

Multiple choice

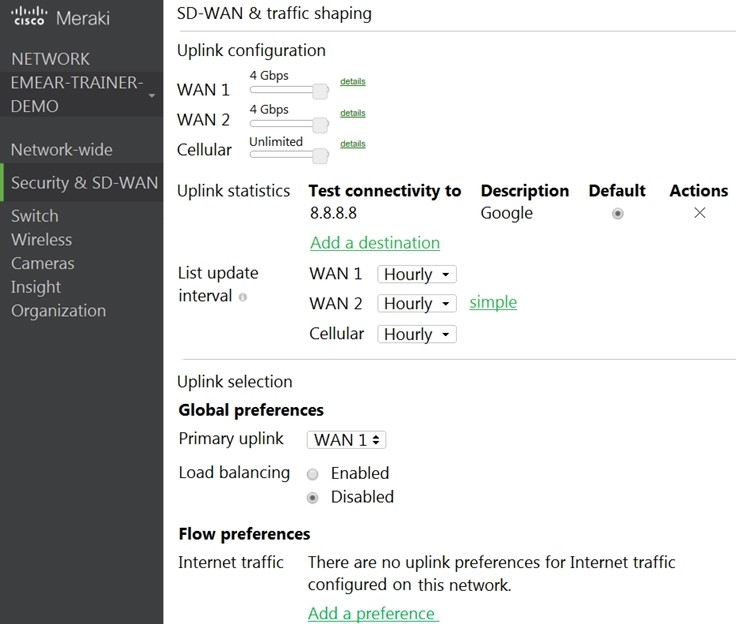

Refer to the exhibit.

Which two actions are required to optimize load balancing asymmetrically with a 4:1 ratio between links? (Choose two.)

A
Change the primary uplink to "none".
B
Add an internet traffic preference that defines the load-balancing ratio as 4:1.
C
Enable load balancing.
D
Set the speed of the cellular uplink to zero.
E
Change the assigned speeds of WAN 1 and WAN 2 so that the ratio is 4:1.

Reveal answer details Close answer details

Correct answersC, E

Question 9

Drag & drop

DRAG DROP

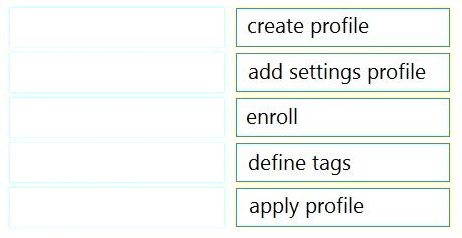

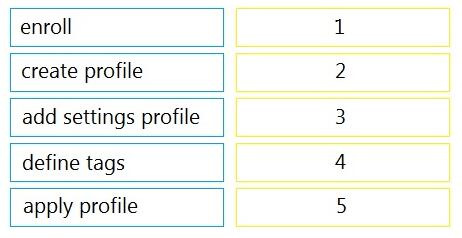

Drag and drop the steps from the left into the sequence on the right to manage device control, according to Cisco Meraki best practice.

Reveal answer details Close answer details

Question 10

Multiple choice

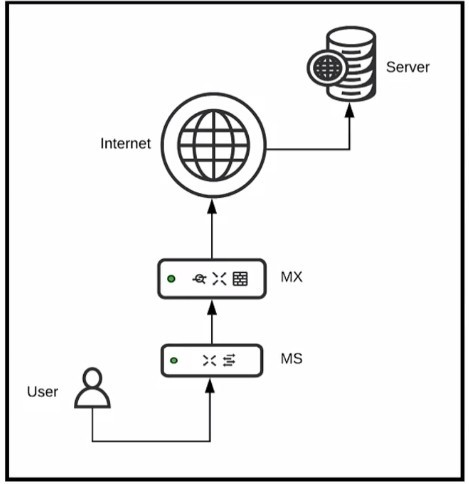

Refer to the exhibit.

Which two configurations are needed to successfully monitor custom applications that a user is accessing using Cisco Meraki Insight? (Choose two)

A
The custom application uses TLS on any ports.
B
The custom application uses HTTP on port 8080.
C
The custom application uses HTTPS on TCP 443.
D
The custom application uses SMB/CIFS.
E
The custom application uses HTTPS on port 8080.

Reveal answer details Close answer details

Correct answersB, C

Explanation

https://documentation.meraki.com/MI/MI_Web_App_Health/Overview#:~:text=On%20this%20page%2C%20you%20can,that%20ports%20cannot%20be%20specified.

Question 11

Multiple choice

Which two actions can extend the video retention of a Cisco Meraki MV Smart Camera? (Choose two.)

A
enabling audio compression
B
installing an SSD memory extension
C
enabling motion-based retention
D
enabling maximum retention limit
E
configuring a recording schedule

Reveal answer details Close answer details

Correct answersC, E

Explanation

References:
https://documentation.meraki.com/MV/Initial_Configuration/Video_Retention
