Free 4A0-109 Exam Dumps Preview

Question 1

Single choice

In a Bridged CO architecture, which of the following is TRUE?

1. A

   Subscriber sessions are terminated on the BNG.

2. B

   Multicast replication on the BSA is supported.

3. C

   IPv6 is supported.

4. D

   PPPoE is supported.

Reveal answer details Close answer details

Correct answerB

Question 2

Single choice

Where the following command can be configured trigger-packet dhcp dhcp6 pppoe?

1. A

   In the BSAN, under the VLAN setup.

2. B

   In the BSA, under a SAP of the VPLS.

3. C

   In the BNG, under a managed SAP of the IES.

4. D

   In the BNG, under a capture SAP of the VPRN.

Reveal answer details Close answer details

Correct answerB

Question 3

Single choice

In the wholesale/retail model, where is it beneficial to do authentication on the domain part of the username only?

1. A

   Retail VPRN service in the wholesale BNG

2. B

   Wholesale VPRN service in the wholesale BNG

3. C

   Wholesale VPRN service in the retail BNG

4. D

   Retail VPRN service in the retail BNG

Reveal answer details Close answer details

Correct answerB

Question 4

Single choice

How many queues per subscriber can be allocated using a high-speed Media Dependent Adapter (HS- MDA)?

1. A

   64 ingress or egress queues

2. B

   16 ingress and 16 egress queues

3. C

   8 ingress and 8 egress queues

4. D

   8 ingress or egress queues

Reveal answer details Close answer details

Correct answerC

Question 5

Single choice

Which of the following is NOT part of the aggregation network?

1. A

   BSA

2. B

   BSAN

3. C

   B-RAS

4. D

   BNG

Reveal answer details Close answer details

Correct answerB

Question 6

Single choice

Which of the following methods encapsulates IPv6 packets into an IPv4 tunnel?

1. A

   Dual-Stack Lite (DS-Lite)

2. B

   Native I Pv4/IPv6 dual-stack

3. C

   6RD

4. D

   Carrier-Grade NAT (CGN)

Reveal answer details Close answer details

Correct answerC

Question 7

Single choice

Which entity is used to identify the access loop to the PPPoE server (BNG)?

1. A

   Option 82

2. B

   Relay Tag

3. C

   Interface ID

4. D

   Loop ID

Reveal answer details Close answer details

Correct answerB

Question 8

Single choice

Assume a subscriber only requested one multicast group.

Which feature should be enabled on the BSAN to ensure the subscriber only receives data from the multicast group requested?

1. A

   IGMP proxy

2. B

   IGMP snooping

3. C

   MC replicator

4. D

   IGMP querier

Reveal answer details Close answer details

Correct answerB

Question 9

Single choice

Which of the following describes the port mode required to support ESM over MPLS on an Alcatel-Lucent 7750 SR?

1. A

   The port mode must be "access".

2. B

   The port mode must be "network" .

3. C

   The port mode must be "hybrid" .

4. D

   The port mode must be "pw-port" .

Reveal answer details Close answer details

Correct answerC

Question 10

Single choice

In numbered WAN RG, between which elements is a PPP session established?

1. A

   Subscriber-hosts and BNG

2. B

   RG and BNG

3. C

   RG and the BSA

4. D

   Subscriber-hosts and BSAN

Reveal answer details Close answer details

Correct answerB

Question 11

Single choice

Which application is NOT synchronized across two BNGs using MCS?

1. A

   PIM

2. B

   SRRP

3. C

   DHCP

4. D

   IGMP

Reveal answer details Close answer details

Correct answerA

Question 12

Single choice

Where and in which direction is a virtual-port typically instantiated?

1. A

   On the BNG, towards the Internet

2. B

   On the BNG, towards the BSAN

3. C

   On the BSAN, towards the BNG

4. D

   On the BSAN, towards the RG

Reveal answer details Close answer details

Correct answerB

Question 13

Single choice

What do IPv6CP Req/Ack messages use to identify the peer?

1. A

   Circuit ID

2. B

   Remote ID

3. C

   Interface ID

4. D

   SAPID

Reveal answer details Close answer details

Correct answerC

Question 14

Single choice

On which interface is SRRP activated?

1. A

   IES interface

2. B

   Network interface

3. C

   Subscriber interface

4. D

   Group interface

Reveal answer details Close answer details

Correct answerD

Question 15

Single choice

An Alcatel-Lucent 7750 SR has a subscriber interface configured with multiple subnets.

How is the subnet that is used for subscriber IP address allocation determined?

1. A

   The DHCP server assigns an IP address based on the gi-address configured on the RG.

2. B

   The DHCP server assigns an IP address based on the gi-address configured in the subscriber interface context on the BSA.

3. C

   The DHCP server assigns an IP address based on the gi-address configured in the group interface context.

4. D

   The DHCP server assigns an IP address based on the option 82 information inserted by the BSA.

Reveal answer details Close answer details

Correct answerC

Question 16

Single choice

Which of the following is correct in a VLAN per all services for all subscribers?

1. A

   One port per BSAN

2. B

   One port per service

3. C

   One SAP per service

4. D

   One SAP per BSAN

Reveal answer details Close answer details

Correct answerD

Question 17

Single choice

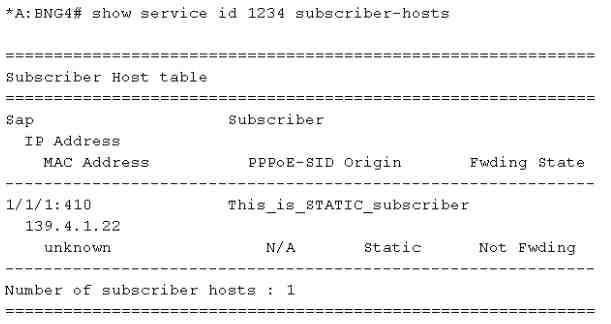

Click on the exhibit.

In an ESM environment, a static host is defined with an IP address but no MAC address. The command "show service id 100 subscriber-hosts" shows the MAC address marked as "Unknown" and it is in a "Not Forwarding" state.

What could be the reason?

1. A

   The static-host MAC address has not been configured.

2. B

   The static-host will not be able to forward traffic and will drop all packets.

3. C

   The MAC address has not been learned yet.

4. D

   The static-host will not be able to forward traffic with an unknown MAC address.

Reveal answer details Close answer details

Correct answerC

Question 18

Single choice

Which of the following were NOT roles of a traditional BNG?

1. A

   Logical termination of PPP sessions

2. B

   Authentication of subscribers using 802.1x

3. C

   Default gateway to the Internet

4. D

   Enforce QoS policies

Reveal answer details Close answer details

Correct answerB

Question 19

Single choice

Which of the following sources can NOT be used to retrieve parameters required to instantiate a dynamic subscriber host?

1. A

   DNS

2. B

   LUDB

3. C

   DHCP

4. D

   Python

Reveal answer details Close answer details

Correct answerA

Question 20

Single choice

Which of the following configuration elements is used to divert subscriber traffic to the AA-ISA?

1. A

   Application group

2. B

   Application profile

3. C

   Application filter

4. D

   Application QoS policy

Reveal answer details Close answer details

Correct answerB

Question 21

Single choice

What is the correct command to map in the SAP-ingress (sap-ingress id: 100) and the default queue (queue id: 1) to the scheduler-policy?

1. A

   Configure qos sap-ingress 100 queue 1 parent <scheduler-policy-name>

2. B

   Configure qos sap-ingress 100 queue 1 map <scheduler-policy-name>

3. C

   Configure qos sap-ingress 100 queue 1 <schedu!er-policy-name>

4. D

   Configure qos sap-ingress 100 queue 1 map scheduler-policy <scheduler-policy-name>

Reveal answer details Close answer details

Correct answerA

Question 22

Single choice

What is the main limitation of the basic subscriber management?

1. A

   Limited bandwidth per SAP

2. B

   Limited SLAs per-subscriber per SAP

3. C

   Limited number of queues

4. D

   Limited ACL policies

Reveal answer details Close answer details

Correct answerB

Question 23

Single choice

What is the benefit of using ESM over MPLS?

1. A

   The BNG group interface can be protected with MPLS Fast Reroute.

2. B

   Subscriber sessions can be backhauled over an MPLS network directly into the BNG.

3. C

   It allows for the creation of an ePipe from the BSAN to the BNG. with the MPLS spoke SDP terminating directly on the group interface.

4. D

   It removes the need for dual-homing the BSAN to two BNGs to protect subscriber sessions.

Reveal answer details Close answer details

Correct answerB

Question 24

Single choice

Which network element will add the PPPoE Relay Tag?

1. A

   RG

2. B

   BSAN

3. C

   BSA

4. D

   BNG

Reveal answer details Close answer details

Correct answerB

Question 25

Single choice

Which technique can be used to prevent direct L2 subscriber-to-subscriber communication?

1. A

   Anti-spoofing

2. B

   MAC-pinning

3. C

   Local-proxy ARP

4. D

   Split horizon group

Reveal answer details Close answer details

Correct answerD

Question 26

Single choice

Which of the following methods encapsulates IPv4 packets into an IPv6 tunnel?

1. A

   Dual-Stack Lite (DS-Lite)

2. B

   CGN-Carrier Grade NAT

3. C

   6RD

4. D

   IPv4/IPv6 native dual-stack

Reveal answer details Close answer details

Correct answerA
