3V0-21.21 Practice Questions Preview

Question 1

Single choice

A customer requires the use of data encryption to ensure data is not accessible when a drive is removed

from the primary storage platform. However, there is also a requirement to use deduplication and compression against all workloads in order to conserve space.

Which solution meets the customer requirements?

A
Data-in-transit encryption
B
OS-level encryption
C
Encrypted backups
D
Array-based encryption

Reveal answer details Close answer details

Correct answerD

Question 2

Single choice

An architect is preparing a design for a customer. Based on requirements, the architect recommends an HCI-based infrastructure with all-flash architecture. During the assessment, it is confirmed that the network throughput generated by virtual machines does not exceed 150 Mb/s.

What is the minimum number and type of network adapters in each server that the architect can recommend to ensure requirements are met and there is no single point of failure?

A
Two 1 GbE network adapters per server
B
Four 1 GbE network adapters per server
C
Four 10 GbE network adapters per server
D
Two 10 GbE network adapters per server

Reveal answer details Close answer details

Correct answerC

Question 3

Multiple choice

An architect is tasked with planning the design of a new vSphere environment. When commissioned, this environment will be used to migrate an existing set of virtual machines.

An inventory of the existing infrastructure, including configured vCPU, RAM and storage sizes has been provided.

In order for each virtual machine to be migrated, which two data sources with peak and average utilization data are required for sizing? (Choose two.)

A
%Ready
B
Disk Write latency
C
CPU
D
Ballooned memory
E
IOPS

Reveal answer details Close answer details

Correct answersB, E

Question 4

Single choice

An architect is designing a new vSphere environment to meet the following requirements: The environment must support 5,000 virtual machines.
The environment will be built initially using 350 hosts.

Which vCenter Server appliance deployment size should the architect specify for the design?

A
Large
B
Small
C
Tiny
D
Medium

Reveal answer details Close answer details

Correct answerA

Question 5

Single choice

An architect is designing a new greenfield environment with 600 ESXi hosts in an automated fashion. The engineering department already has a PXE Boot server, TFTP server, and DHCP server set up with an NFS mount for their current Linux servers.

The architect must be able to demonstrate and meet a security requirement to have all infrastructure processes separated.

Which recommendation should the architect make for the ESXi host deployment?

A
Request an isolated network segment to use and dedicate it to Auto Deploy functions
B
Ask the business to expand the engineering environment to service the virtual environment as well
C
Request a common shared network with flexible security measures to accommodate different auto deployment options
D
Deploy each ESXi host individually and document it to satisfy security requirements

Reveal answer details Close answer details

Correct answerC

Question 6

Single choice

An architect is tasked with recommending a solution for a company that is running out of VLANs. Currently the company is running two separate data centers based on vSphere including an Enterprise Plus license.
In the first data center, the problem was solved by using VMware NSX and overlay network. In the second data center, there is currently no VMware NSX implementation in place and no budget for additional licenses.

What should the architect recommend as a potential solution to provide support for additional VLANs?

A
Separate Distributed Virtual Switches (DVS)
B
Private VLANs (PVLAN)
C
Virtual Guest Tagging (VGT)
D
vSwitch VLAN Tagging (VST)

Reveal answer details Close answer details

Correct answerA

Question 7

Single choice

The architect for a large enterprise is tasked with reviewing a proposed design created by a service partner.

Which design elements are expected to be detailed within the physical design section of the documentation?

A
A design diagram illustrating the configuration and specific attributes, such as IP addresses
B
A list of requirements, constraints, and risks
C
A solution architecture diagram with the components and data flow
D
An entity relationship diagram describing upstream and downstream dependencies for specific service components

Reveal answer details Close answer details

Correct answerB

Question 8

Single choice

An architect will be taking over control of a former Linux server fleet and repurposing the hardware into a new vSphere cluster. The current environment is already connected to the network but the hosts do not have any local disks. Since the fleet hardware is uniform, the architect can use a single ESXi image. All hosts within the cluster have the same CPU and memory capacity.

Which ESXi deployment method should the architect use?

A
Stateless cached vSphere Auto Deploy
B
Stateless vSphere Auto Deploy
C
Manual install of each ESXi host with an image from USB
D
Stateful vSphere Auto Deploy

Reveal answer details Close answer details

Correct answerA

Question 9

Single choice

An architect is designing a new VMware solution for a customer that has a number of different resource profiles.

The following are the business requirements for the design: The solution must support virtual machines with the following storage profiles:
- Write-intensive
- Backup
- Write-Once-Read-Many (WORM) archive
The solution must support migration of virtual machine disks between storage profiles.
The WORM archive data must be located at an isolated secure site.
The backup storage array must only be connected to a backup media server.
All data should be recoverable from backup.

Which design decision should the architect make to meet the business requirements?

A
The solution will leverage a single storage array for the WORM archive and write-intensive storage profiles
B
The solution will leverage the same array for the backup and write-intensive storage profiles
C
The solution will leverage a different array for each storage profile
D
The solution will leverage a single storage array for all storage profiles

Reveal answer details Close answer details

Correct answerC

Question 10

Single choice

There is a request for approved virtual machine applications through a new vSphere platform's integrated automation portal. The platform was built following all provided company security guidelines and has been assessed against Sarbanes-Oxley Act of 2002 (SOX) regulations.

The platform has the following characteristics: vRealize Operations is being used to monitor all clusters.
There is a dedicated ESXi cluster, supporting all management services.
- All network traffic is via distributed virtual switches (DVS).
There is a dedicated ESXi cluster for all line-of-business applications.
- Network traffic is serviced by NSX-T.
There is a dedicated ESXi cluster for virtual desktop infrastructure (VDI).
- Network traffic is serviced by NSX-T.

The application owner is requesting approval to install a new service that must be protected as per the Payment Card Industry (PCI) Data Security Standard.

Which additional non-functional requirement should the architect include in the design to support the new service?

A
The vSphere hosting platform and all PCI application virtual machines must be assessed against Payment Card Industry (PCI) Data Security Standard compliance.
B
The vSphere hosting platform and all PCI application virtual machines must be assessed for SOX compliance.
C
The vSphere hosting platform and all PCI application virtual machine network traffic must be routed via NSX-T.
D
The vSphere hosting platform and all PCI application virtual machines must be monitored using the vRealize Operations Compliance Pack for Payment Card Industry.

Reveal answer details Close answer details

Correct answerC

Question 11

Multiple choice

An architect is tasked with designing a greenfield VMware software-defined data center (SDDC) solution that will be used to deliver a private cloud service for a customer.

During the initial meeting with the service owner and business sponsor, the customer has provided the following information to help inform the design: The solution must support the concurrent running of 1,000 virtual machines
The production environment must be delivered across two geographically dispersed data centers
All virtual machines must be capable of running in either data center.
The two data centers are currently connected to each other through a single but diversely routed, high bandwidth and low latency link.
The link between the two data centers is capable of supporting a round-trip time (RTT) of 150 ms
The existing server hardware standard document states that all virtual infrastructure hosts must be
deployed using vSAN ReadyNodes
The service owner has stated that it is critical to ensure the availability target of 99.9%
All virtual machine backups must be completed using the existing backup service
The recovery time objective (RTO) for the service is five minutes
The recovery point objective (RPO) of the service is four hours

Which two elements represent risks to the successful delivery of this solution? (Choose two.)

A
The use of only two data centers
B
The network connectivity between data center sites
C
The use of vSAN ReadyNodes
D
The RTT on the link between the two data centers
E
The use of the existing backup service

Reveal answer details Close answer details

Correct answersD, E

Question 12

Multiple choice

During a requirements gathering workshop, the customer provides the following requirement (REQ) and constraints (CON): REQ01: The customer is looking for a way to limit database virtual machine (VM) placement to save on
CPU licensing costs.
CON01: There is a single cluster with no budget to scale.
CON02: All virtual machines must run on the consolidated cluster.

Which two design decisions should the architect make to meet the customer requirement? (Choose two.)

A
The solution must use VM-VM anti-affinity rules
B
The solution must use vSphere DRS in manual mode
C
The solution must use a vRealize Orchestrator workflow for VM placement
D
The solution must use VM-Host affinity rules
E
The solution must use vSphere VM and host DRS groups

Reveal answer details Close answer details

Correct answersC, E

Question 13

Single choice

A customer defines a requirement to minimize the vMotion migration time during a maintenance period.
The servers being used are equipped with eight 1 GbE network adapters.

Per the defined logical network configuration, there are two network adapters each used for:

Management traffic
vMotion traffic
iSCSI traffic
Virtual machine traffic

Which design decision should the architect make to meet the customer requirement?

A
Use Network I/O Control to define a reservation for vMotion traffic.
B
Implement Multi-NIC vMotion by adding additional vMotion VMkernels.
C
Configure a dedicated TCP/IP stack for vMotion traffic.
D
Combine vMotion and Management traffic to make use of four adapters.

Reveal answer details Close answer details

Correct answerA

Question 14

Single choice

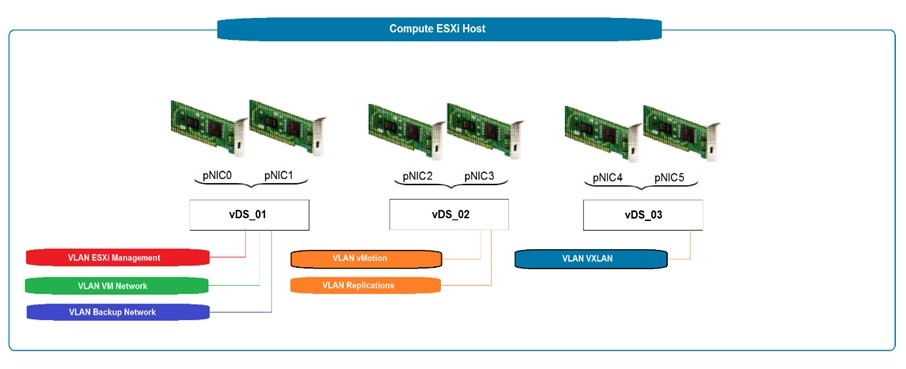

Refer to the exhibit.

During a requirements gathering workshop, the architect shares the following diagram:

What should the architect recommend for guaranteed throughput for each service?

A
Use explicit failover order with pNIC0 as Active for ESXi Management and VM Network
Use explicit failover order with pNIC1 as Active for backup network
Use explicit failover order with pNIC2 as Active for vMotion
Use explicit failover order with pNIC3 as Active for replication
B
Use the Route Based on IP Hash for ESXi management and VM network
Use the Route Based on IP Hash for backup network
Use the Route Based on the Originating Virtual Port for vMotion
Use failover with pNIC3 as Active for replication
C
Create a link aggregation group (LAG) for vDS_01
Use the Route Based on Physical NIC Load for vMotion
Use the Route Based on Physical NIC Load for replication
D
Use the Route Based on IP Hash for ESXi management and VM network
Use failover with pNIC1 as Active for backup network Create a link aggregation group (LAG) for vDS_02

Reveal answer details Close answer details

Correct answerB
