Question 1

Single choice

From where can a System Manager (SMGR) export of user data be performed?

A
from an SSH session with the System Platform Dom-0
B
from an SSH session with the System Manager virtual machine
C
from an SSH session with the System Platform C-Dom (utilities domain)
D
from a web client access System Manager web interface User Management

Reveal answer details Close answer details

Correct answerD

Question 2

Single choice

Shortly after an installation, SIP users in abc.com domain are registered but not able to call H.323 users in training.com domain. When you run traceSM you see a "403 Forbidden" error when users try to call each other.

What is the issue and which troubleshooting procedure will help you to identify and isolate the problem?

A
Replication Failure: run initDRS to reinitialize the synchronization between system and session manager.
B
Network Issue: status the Bandwidth usage to each location and make sure Call Admission Control is activated.
C
Misconfigured Communication profile: Sip Users have not been associated to the CM endpoint.
D
Incorrect Routing: verify domains were properly configured in System Manager, verify an adaption to modify the secure/destination domain was created and applied to the appropriate sip entity.

Reveal answer details Close answer details

Correct answerC

Question 3

Single choice

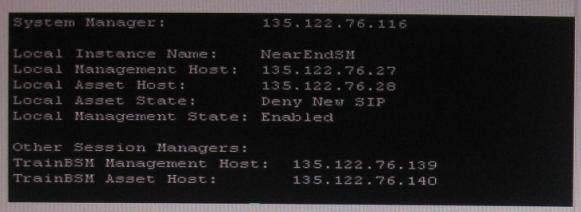

Review the output of the command shown in the exhibit.

Which command is used to generate these results and what does it tell you?

A
swversion displays the Session Manager Release information.
B
statapp displays the current status of the Session Manager services.
C
initDRS displays the Session Manager Node registration and data replication.
D
traceSM displays a ladder trace of the SIP requests going in and out of the Session Manager.
E
smconfig displays the network information and status the Session Manager.

Reveal answer details Close answer details

Correct answerE

Question 4

Single choice

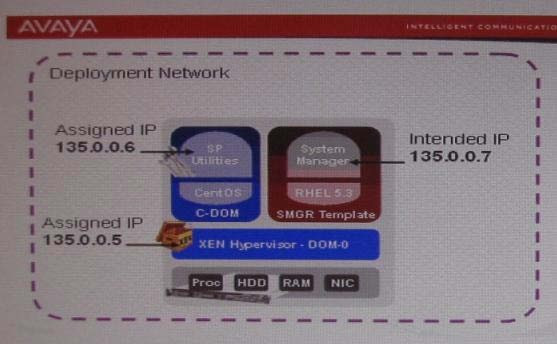

Which URL should be used to access the web console to install a System Manager template?

A
https://135.0.0.5/webconsole
B
https://135.0.0.6/webconsole
C
https://135.0.0.7/SMGR
D
https://135.0.0.7/webconsole

Reveal answer details Close answer details

Correct answerC

Question 5

Single choice

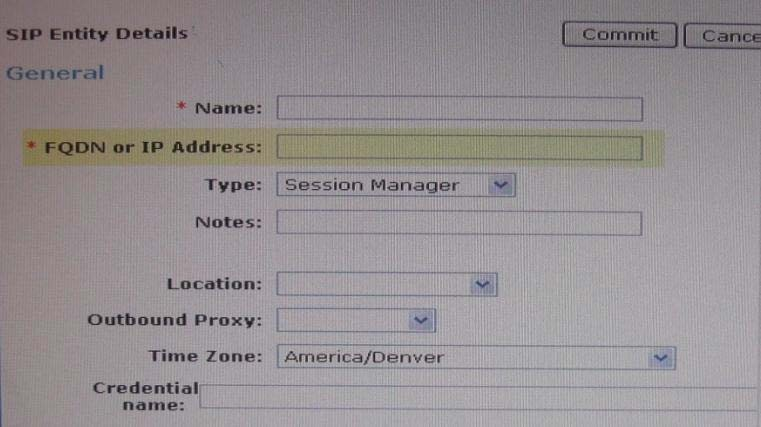

When defining a SIP Entity of type "Session Manager", what should be placed in the FQDN or IP Address field?

A
Security Module IP address (eth2)
B
System Manager IP address (eth0)
C
Session Manager Management IP address (eth0)
D
System Platform web console IP address (eth2)

Reveal answer details Close answer details

Correct answerA

Question 6

Single choice

Users between four customer sites are reporting frequent problems placing and receiving calls. In trying to identify the issue, you check the Bandwidth Usage between Session Manager Locations and get an error message, "Unable to access status information for SM1 ?cannot connect to server, internal error".

Which item is most likely the cause of this error?

A
There is limited bandwidth between the locations.
B
The Session Manager Service State was set to deny new service.
C
The System Manager cannot communicate with the Session Manager because of a network issue.
D
The Session Manager is processing high volume of calls and is causing inter-SM server connectivity problems.

Reveal answer details Close answer details

Correct answerD

Question 7

Single choice

A technician is tasked with creating a set of Routing Policies for the organization.

Which statement describes the steps that must be taken prior to defining a new Routing Policy?

A
A SIP entity must be specified as both a destination and as an origination point. You must provide the times of day that the policy applies, and a dial pattern or regular expression that the call URI must match.
B
The destination SIP entity can either be chosen specifically, or it may be selected implicitly using a matching expression. Multiple times of day the policy is active can be chosen. The policy must have either a dial pattern or regular expression.
C
A dial pattern must be specified which the called party in the SIP message is matched against.
Inclusion of a time range, or regular expression, is optional but recommended since it makes the policy
more specific.
D
A SIP Entity must be specified as a destination.

Reveal answer details Close answer details

Correct answerC

Question 8

Single choice

Session Manager has a routing policy that routes calls made to any number beginning with '100' to SIP Entity X. However, 'sip.-1001avaya.com' is the SIP communication profile address of user Y. User Y is not currently registered (signed in) with Session Manager. What will happen if Session Manager receives a call addressed to 'sip.
-1001avaya.com' and why?

A
It depends on the time ranges of the policy.If the call is placed inside a defined time range for the policy, the call will be routed to destination X.If not, then Session Manager will attempt to route the call to user Y.Since Y is not registered, the call will timeout, and the call will fail.
B
Since user Y is not currently registered, the call will be handled by the routing policy.If the call is placed during a time range specified by the policy, then the call will be routed to destinationX. If not, then the call will fail.
C
Since the destination URI matches a communication profile SIP handle, Session Manager will not usethe routing policy in handling the call.The call will fail since user Y is not currently registered.
D
Since the destination URI matches a routing policy dial pattern, Session Manager will give noconsideration to the user Y registration status.If the call is made during a time range for the policy, the policy will be applied and the can will be routed to destination X.If not, then the original URI of 'sip.-1001avaya.com' will be used as the destination to which Session Manager will route the call.

Reveal answer details Close answer details

Correct answerC

Question 9

Multiple choice

Which two statements describe the purpose of a System Manager (SMGR) role? (Choose two.)

A
It provides access to any number of resources managed by SMGR.
B
It impacts the originating and terminating applications that can be sequenced for a user.
C
It is automatically held by users that have been added to any group containing that role.
D
It can be held by multiple administrators at the same time and a single administrator can have multiple roles enabling tight control of access.

Reveal answer details Close answer details

Correct answersA, D

Question 10

Single choice

System Manager provides a Dashboard summary for monitoring and validating the health of each Session Manager instance.

What information is not available from the Session Manager Dashboard?

A
Service State
B
Security Module status
C
Entity Monitoring
D
Managed Bandwidth status

Reveal answer details Close answer details

Correct answerD

Question 11

Single choice

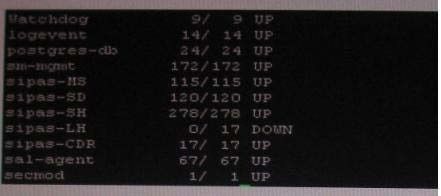

Review the output of the command shown in the exhibit.

Which command is used to generate these results and what does it tell you?

A
swversion displays the Session Manager release information.
B
statapp displays the current status of the Session Manager services.
C
smconfig displays the network information and status of the Session Manager.
D
traceSM displays a ladder trace of the SIP requests going in and out of the Session Manage.
E
initDRS displays the Session Manager node registration and data replication.

Reveal answer details Close answer details

Correct answerB
