Free 1Z0-117 Exam Dumps Preview

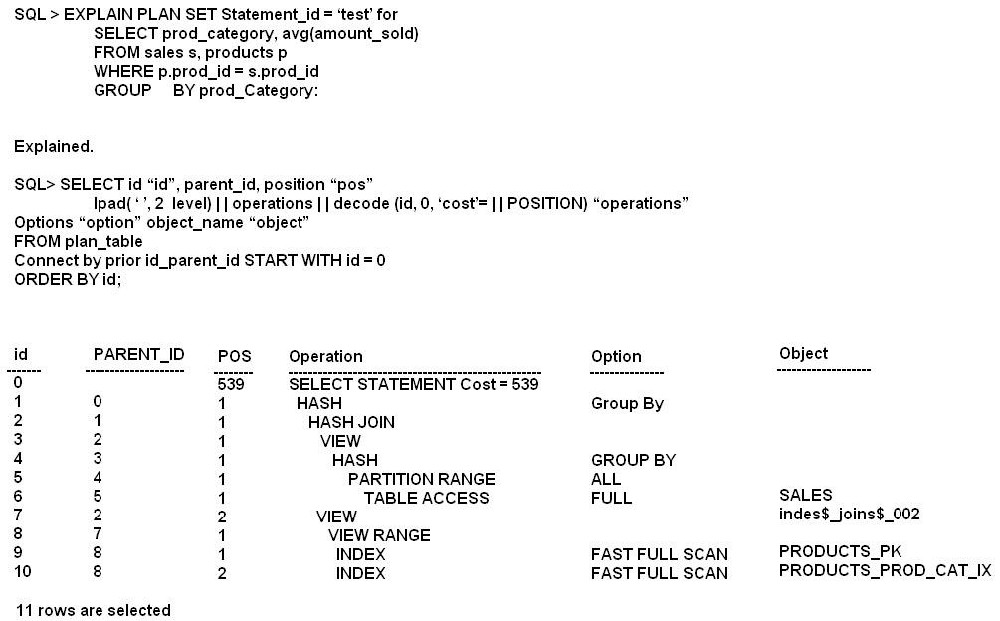

Step 1: (1)
Step 2: (2)
Step 3: (3)
Step 4: (4)
By setting the parameter OPTIMIZER_FEATURES_ENABLE to the 10g version used before the upgrade, you should be able to revert back to the same execution plans you had prior to the upgrade.
Step 5: (8)
OPTIMIZER_CAPTURE_SQL_PLAN_BASELINES
In Oracle Database 11g a new feature called SQL Plan Management (SPM) has been introduced to guarantees any plan changes that do occur lead to better performance. When OPTIMIZER_CAPTURE_SQL_PLAN_BASELINES is set to TRUE (default FALSE) Oracle will
automatically capture a SQL plan baseline for every repeatable SQL statement on the system. The execution plan found at parse time will be added to the SQL plan baseline as an accepted plan.

Step 6: (10)
OPTIMIZER_USE_SQL_PLAN_BASELINES enables or disables the use of SQL plan baselines stored in SQL Management Base. When enabled, the optimizer looks for a SQL plan baseline for the SQL statement being compiled. If one is found in SQL Management Base, then the optimizer will cost each of the baseline plans and pick one with the lowest cost.

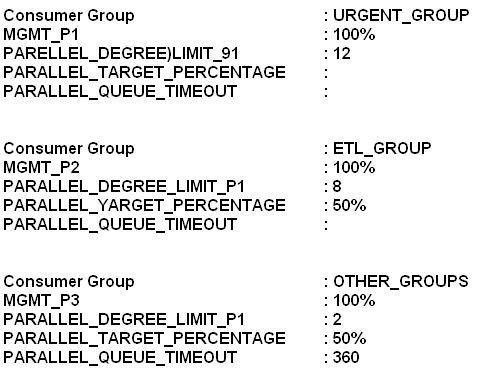

B: PARALLEL_QUEUE_TIMEOUT
Parallel Queue Timeout

When you use parallel statement queuing, if the database does not have sufficient resources to execute a parallel statement, the statement is queued until the required resources become available. However, there is a chance that a parallel statement may be waiting in the parallel statement queue for longer than is desired. You can prevent such scenarios by specifying the maximum time a parallel statement can wait in the parallel statement queue.

The PARALLEL_QUEUE_TIMEOUT directive attribute enables you to specify the maximum time, in seconds, that a parallel statement can wait in the parallel statement queue before it is timed out. The PARALLEL_QUEUE_TIMEOUT attribute can be set for each consumer group.
Incorrect:
Not C: ETL_GROUP PARALLEL_TARGET_PERCENTAGE is 50%. So ETL_GROUP can only consume 32 servers.

Note:
* If you want more per-workload management, you must use the following directive attributes:

/ MGMT_Pn

Management attributes control how a parallel statement is selected from the parallel statement queue for execution. You can prioritize the parallel statements of one consumer group over another by setting a higher value for the management attributes of that group.

/ PARALLEL_TARGET_PERCENTAGE

/ PARALLEL_QUEUE_TIMEOUT

/ PARALLEL_DEGREE_LIMIT_P1

* PARALLEL_DEGREE_LIMIT_P1
Degree of Parallelism Limit

You can limit the maximum degree of parallelism for any operation within a consumer group. The degree of parallelism is the number of parallel execution servers that are associated with a single operation. Use the PARALLEL_DEGREE_LIMIT_P1 directive attribute to specify the degree of parallelism for a consumer group.

The degree of parallelism limit applies to one operation within a consumer group; it does not limit the total degree of parallelism across all operations within the consumer group. However, you can combine both the PARALLEL_DEGREE_LIMIT_P1 and the PARALLEL_TARGET_PERCENTAGE directive attributes to achieve the desired control.

* PARALLEL_TARGET_PERCENTAGE
Parallel Target Percentage

It is possible for a single consumer group to launch enough parallel statements to use all the available parallel servers. If this happens, when a high-priority parallel statement from a different consumer group is run, no parallel servers are available to allocate to this group. You can avoid such a scenario by limiting the number of parallel servers that can be used by a particular consumer group.

Use the PARALLEL_TARGET_PERCENTAGE directive attribute to specify the maximum percentage of the parallel server pool that a particular consumer group can use. The number of parallel servers used by a particular consumer group is counted as the sum of the parallel servers used by all sessions in that consumer group.

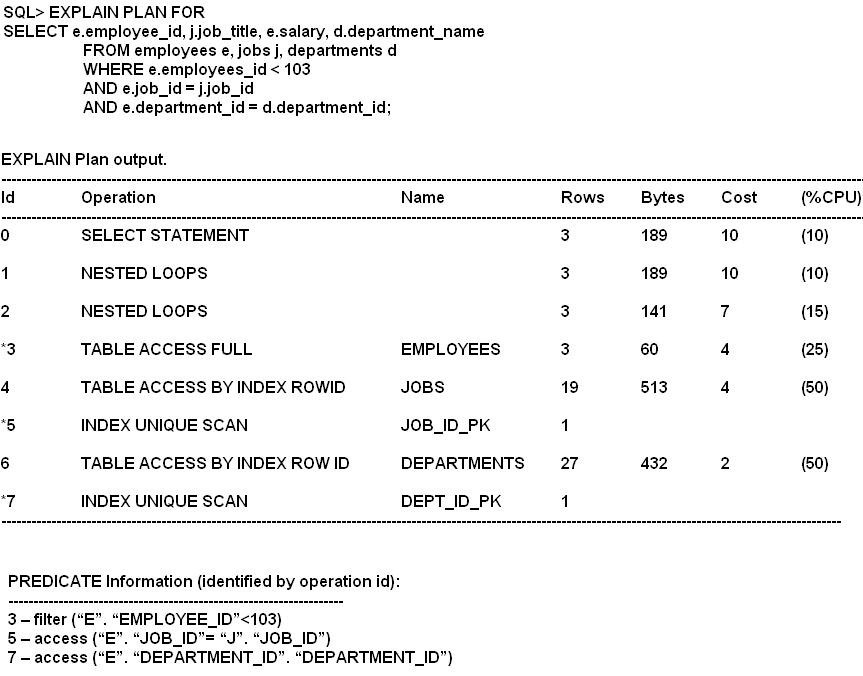

As per exhibit:
B, not A, Not C: First is line 5 executed, followed by line 4, followed by line 3.
Step 2 is line 4.

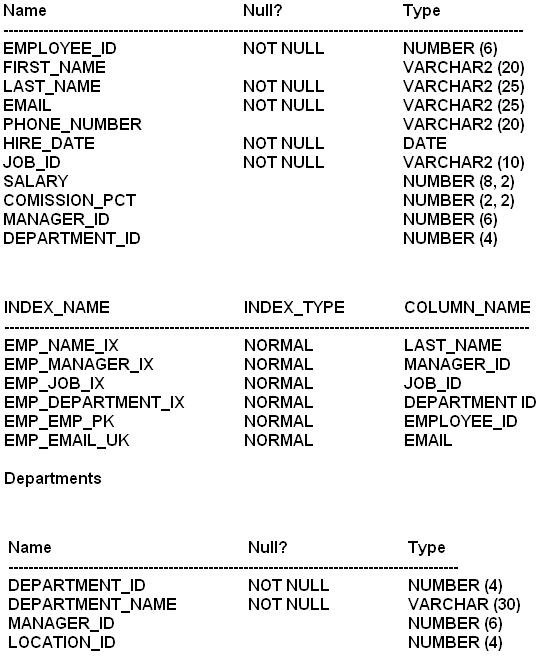

E: The Department_ID column has lower cardinality compared to the JOB_ID column, so it is better suited for a bitmapped index.

Note:
* Oracle bitmap indexes are very different from standard b-tree indexes. In bitmap structures, a two-dimensional array is created with one column for every row in the table being indexed. Each column represents a distinct value within the bitmapped index. This two-dimensional array represents each value within the index multiplied by the number of rows in the table.

At row retrieval time, Oracle decompresses the bitmap into the RAM data buffers so it can be rapidly scanned for matching values. These matching values are delivered to Oracle in the form of a Row-ID list, and these Row-ID values may directly access the required information.

* The real benefit of bitmapped indexing occurs when one table includes multiple bitmapped indexes. Each individual column may have low cardinality. The creation of multiple bitmapped indexes provides a very powerful method for rapidly answering difficult SQL queries.

* Oracle bitmap indexes are very different from standard b-tree indexes. In bitmap structures, a two-dimensional array is created with one column for every row in the table being indexed. Each column represents a distinct value within the bitmapped index. This two-dimensional array represents each value within the index multiplied by the number of rows in the table.

At row retrieval time, Oracle decompresses the bitmap into the RAM data buffers so it can be rapidly scanned for matching values. These matching values are delivered to Oracle in the form of a Row-ID list, and these Row-ID values may directly access the required information.

displays information about enabled SQL traces.
DBA_ENABLED_TRACES

Incorrect:
A: The DBMS_SERVICE package lets you create, delete, activate, and deactivate services for a single instance.
B: The DBMS_MONITOR package let you use PL/SQL for controlling additional tracing and statistics gathering.

References:
Oracle Database Reference, DBA_ENABLED_TRACES

C: OPTIMIZER_FEATURES_ENABLE acts as an umbrella parameter for enabling a series of optimizer features based on an Oracle release number.

Note: The estimator determines the overall cost of a given execution plan. The estimator generates three different types of measures to achieve this goal:

* Selectivity

This measure represents a fraction of rows from a row set. The selectivity is tied to a query predicate, such as last_name='Smith', or a combination of predicates.
* Cardinality

This measure represents the number of rows in a row set.
1,
* Cost

This measure represents units of work or resource used. The query optimizer uses disk I/O, CPU usage, and memory usage as units of work.

If statistics are available, then the estimator uses them to compute the measures. The statistics improve the degree of accuracy of the measures.

INSERT
Creates a SQL script that stores the trace file statistics in the database. TKPROF creates this script with the name filename 3. This script creates a table and inserts a row of statistics for each traced SQL statement into the table.

Note:

Oracle SQL is parsed before execution, and a hard parse includes these steps:
*

1. Loading into shared pool - The SQL source code is loaded into RAM for parsing. (the "hard" parse step)

2. Syntax parse - Oracle parses the syntax to check for misspelled SQL keywords.

3. Semantic parse - Oracle verifies all table & column names from the dictionary and checks to see if you are authorized to see the data.

4. Query Transformation - If enabled (query_rewrite=true), Oracle will transform complex SQL into simpler, equivalent forms and replace aggregations with materialized views, as appropriate.

5. Optimization - Oracle then creates an execution plan, based on your schema statistics (or maybe with statistics from dynamic sampling in 10g).

6. Create executable - Oracle builds an executable file with native file calls to service the SQL query.

*
The parsing process performs two main functions:

o Syntax Check: is the statement a valid one. Does it make sense given the SQL grammar documented in the SQL Reference Manual. Does it follow all of the rules for SQL.

o Semantic Analysis: Going beyond the syntax ? is the statement valid in light of the objects in the database (do the tables and columns referenced exist). Do you have access to the objects ? are the proper privileges in place? Are there ambiguities in the statement ? for example if there are two tables T1 and T2 and both have a column X, the query ?select X from T1, T2 where ?? is ambiguous, we don?t know which table to get X from. And so on.
So, you can think of parsing as basically a two step process, that of a syntax check to check the validity of the statement and that of a semantic check ? to ensure the statement can execute properly.

References:
Oracle hard-parse vs. soft parse

Incorrect:

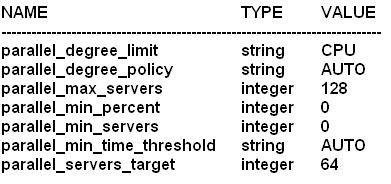

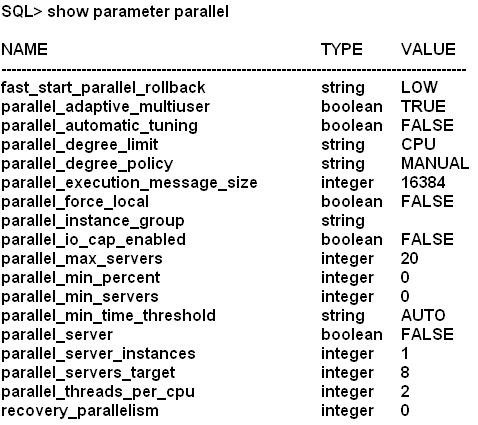

A, D, E: When PARALLEL_MIN_TIME_THRESHOLD is set to AUTO the PARALLEL_MIN_TIME_THRESHOLD is set to 30, not to 10. See note below.

Note:
* parallel_min_time_threshold

PARALLEL_MIN_TIME_THRESHOLD specifies the minimum execution time a statement should have before the statement is considered for automatic degree of parallelism. By default, this is set to 30 seconds. Automatic degree of parallelism is only enabled if PARALLEL_DEGREE_POLICY is set to AUTO or LIMITED.

Note:
* Statistics quantify the data distribution and storage characteristics of tables, columns, indexes, and partitions.

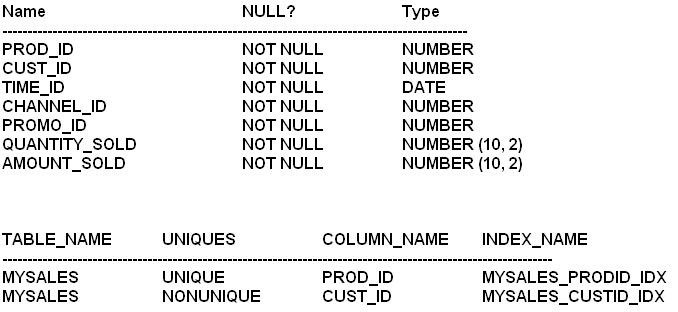

* INDEX_COMBINE
Forces a bitmap index access path on tab.
Primarily this hint just tells Oracle to use the bitmap indexes on table tab. Otherwise Oracle will choose the best combination of indexes it can think of based on the statistics. If it is ignoring a bitmap index that you think would be helpful, you may specify that index plus all of the others taht you want to be used. Note that this does not force the use of those indexes, Oracle will still make cost based choices.
* Histograms Opportunities
Any column used in a where clause with skewed data Histograms are NOT just for indexed columns.
Adding a histogram to an un-indexed column that is used in

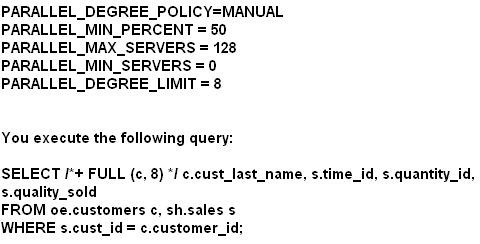

A: ORA-12827:
insufficient parallel query slaves available
Cause: PARALLEL_MIN_PERCENT parameter was specified and fewer than minimum slaves were acquired Action: either re-execute query with lower PARALLEL_MIN_PERCENT or wait until some running queries are completed, thus freeing up slaves

B: Your query doesn't run because you've told Oracle not to run it unless at least 5% of the parallel execution processes are available for your query.

Set PARALLEL_MIN_PERCENT=0 or increase the number of parallel execution processes by increasing the PARALLEL_MAX_SERVERS parameter.
G: PARALLEL_DEGREE_POLICY
PARALLEL_DEGREE_POLICY specifies whether or not automatic degree of Parallelism, statement queuing, and in-memory parallel execution will be enabled.

LIMITED

Enables automatic degree of parallelism for some statements but statement queuing and in-memory Parallel Execution are disabled. Automatic degree of parallelism is only applied to those statements that access tables or indexes decorated explicitly with the PARALLEL clause. Tables and indexes that have a degree of parallelism specified will use that degree of parallelism.

Note:
PARALLEL_MIN_PERCENT operates in conjunction with PARALLEL_MAX_SERVERS and PARALLEL_MIN_SERVERS. It lets you specify the minimum percentage of parallel execution processes (of the value of PARALLEL_MAX_SERVERS) required for parallel execution. Setting this parameter ensures that parallel operations will not execute sequentially unless adequate resources are available. The default value of 0 means that no minimum percentage of processes has been set.

Consider the following settings:

PARALLEL_MIN_PERCENT = 50
PARALLEL_MIN_SERVERS = 5
PARALLEL_MAX_SERVERS = 10

If 8 of the 10 parallel execution processes are busy, only 2 processes are available. If you then request a query with a degree of parallelism of 8, the minimum 50% will not be met.

You can use this parameter in conjunction with PARALLEL_ADAPTIVE_MULTI_USER. In a multi-user environment, an individual user or application can set PARALLEL_MIN_PERCENT to a minimum value until sufficient resources are available on the system and an acceptable degree of parallelism is returned.

Note:
* When the SQL Tuning Advisor recommends that a SQL Profile be used, you should accept the SQL Profile that is recommended. In cases where the SQL
Tuning Advisor recommends that an index and a SQL Profile be used, both should be used. You can use the DBMS_SQLTUNE.ACCEPT_SQL_PROFILE procedure to accept a SQL Profile recommended by the SQL Tuning Advisor. This creates and stores a SQL Profile in the database.

* When tuning SQL statements with the SQL Tuning Advisor, if the advisor finds a tuned plan and verifies its performance to be better than a plan chosen from the corresponding SQL plan baseline, it makes a recommendation to accept a SQL profile. When the SQL profile is accepted, the tuned plan is added to the
corresponding SQL plan baseline.

* If SQL plan management is used and there is already an existing plan baseline for the SQL statement, a new plan baseline will be added when a SQL profile is
created.
* SQL plan management is a preventative mechanism that records and evaluates the execution plans of SQL statements over time, and builds SQL plan baselines composed of a set of existing plans known to be efficient. The SQL plan baselines are then used to preserve performance of corresponding SQL statements, regardless of changes occurring in the system.

* SQL plan baseline is fixed if it contains at least one enabled plan whose FIXED attribute is set to YES.

* ACCEPT_SQL_PROFILE Procedure and Function

This procedure creates a SQL Profile recommended by the SQL Tuning Advisor. The SQL text is normalized for matching purposes though it is stored in the data dictionary in de-normalized form for readability.

SERV_MOD_ACT_TRACE_ENABLE serv_mod_act_trace_enable and serv_mod_act_trace_disable, which enables and disables trace for given service_name, module and action.
For example for a given service name you can trace all session started from SQL*Plus. Module and action in your own created application can be set using dbms_application_info set_module and set_action procedures.

serv_mod_act_trace_enable fills sys table wri$_tracing_enabled and view dba_enabled_traces on top of this table as follows:

SQL> exec dbms_monitor.serv_mod_act_trace_enable(service_name=>'orcl', module_name=>'SQL*Plus')

PL/SQL procedure successfully completed.

SQL> select * from sys.wri$_tracing_enabled;

TRACE_TYPE PRIMARY_ID QUALIFIER_ID1 QUALIFIER_ID2 INSTANCE_NAME
FLAGS
---------- ---------- ------------- ------------- ------------- ----- 4 orcl SQL*Plus 8 SQL> select * from dba_enabled_traces;

TRACE_TYPE PRIMARY_ID QUALIFIER_ID1 QUALIFIER_ID2 WAITS BINDS
INSTANCE_NAME
-------------- ---------- ------------- ------------- ----- ----- ------------- SERVICE_MODULE orcl SQL*Plus TRUE FALSE

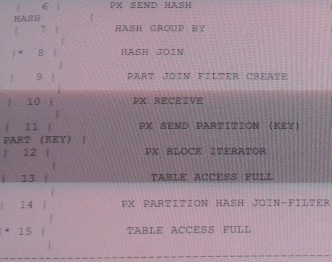

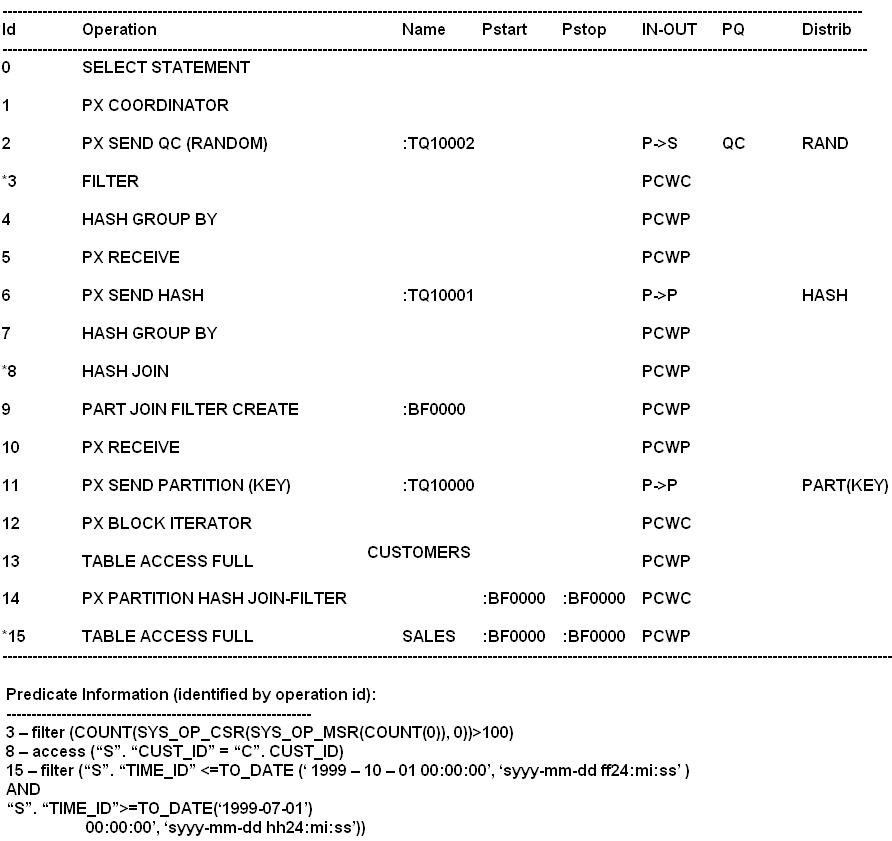

B: As per line 14 and 15.

C: As per exhibit line 13 is execute before line 15.

Incorrect:
Not E: As per line 13 and 15 they are not executed simultaneously.

A: Parallel Target Percentage

It is possible for a single consumer group to launch enough parallel statements to use all the available parallel servers. If this happens, when a high-priority parallel statement from a different consumer group is run, no parallel servers are available to allocate to this group. You can avoid such a scenario by limiting the number of parallel servers that can be used by a particular consumer group.

Use the PARALLEL_TARGET_PERCENTAGE directive attribute to specify the maximum percentage of the parallel server pool that a particular consumer group can use. The number of parallel servers used by a particular consumer group is counted as the sum of the parallel servers used by all sessions in that consumer group.

Incorrect:

Not B: PARALLEL_SERVERS_TARGET specifies the number of parallel server processes allowed to run parallel statements before statement queuing will be used. When the parameter PARALLEL_DEGREE_POLICY is set to AUTO, Oracle will queue SQL statements that require parallel execution, if the necessary parallel server processes are not available. Statement queuing will begin once the number of parallel server processes active on the system is equal to or greater
than PARALLEL_SERVER_TARGET.
Not C: Would be true if we replace PARALLEL_MAX_SERVERS with PARALLEL_SERVER_TARGET.
Not E: The PARALLEL_QUEUE_TIMEOUT directive attribute enables you to specify the maximum time, in seconds, that a parallel statement can wait in the parallel statement queue before it is timed out. The PARALLEL_QUEUE_TIMEOUT attribute can be set for each consumer group. This attribute is applicable even if you do not specify other management attributes (mgmt_p1, mgmt_p2, and so on) in your resource plan.
Note:
* PARALLEL_DEGREE_POLICY
AUTO
Enables automatic degree of parallelism, statement queuing, and in-memory parallel execution.

* The PARALLEL_TARGET_PERCENTAGE attribute enables you to specify when parallel statements from a consumer group can be queued. Oracle Database maintains a separate parallel statement queue for each consumer group.

* PARALLEL_SERVERS_TARGET specifies the number of parallel server processes allowed to run parallel statements before statement queuing will be used.
When the parameter PARALLEL_DEGREE_POLICY is set to AUTO, Oracle will queue SQL statements that require parallel execution, if the necessary parallel server processes are not available. Statement queuing will begin once the number of parallel server processes active on the system is equal to or greater than PARALLEL_SERVER_TARGET.

By default, PARALLEL_SERVER_TARGET is set lower than the maximum number of parallel server processes allowed on the system (PARALLEL_MAX_SERVERS) to ensure each parallel statement will get all of the parallel server resources required and to prevent overloading the system with parallel server processes.

Note that all serial (non-parallel) statements will execute immediately even if statement queuing has been activated.

* Oracle Database Resource Manager (the Resource Manager) enables you to optimize resource allocation among the many concurrent database sessions.

The elements of the Resource Manager are:

/ Resource consumer group A group of sessions that are grouped together based on resource requirements. The Resource Manager allocates resources to resource consumer groups, not to individual sessions.

/ Resource plan A container for directives that specify how resources are allocated to resource consumer groups. You specify how the database allocates resources by activating a specific resource plan.

/ Resource plan directive Associates a resource consumer group with a particular plan and specifies how resources are to be allocated to that resource consumer group.

A scan is slower than a row fetch (from hash value or rowid).

The trcsess utility consolidates trace output from selected trace files based on several criteria:

Session ID
Client ID
Service name
Action name
Module name
After trcsess merges the trace information into a single output file, the output file could be processed by TKPROF.

Note:
* trcsess is useful for consolidating the tracing of a particular session for performance or debugging purposes. Tracing a specific session is usually not a problem in the dedicated server model as a single dedicated process serves a session during its lifetime. You can see the trace information for the session from the trace file belonging to the dedicated server serving it. However, in a shared server configuration a user session is serviced by different processes from time to time. The trace pertaining to the user session is scattered across different trace files belonging to different processes. This makes it difficult to get a complete picture of the life cycle of a session.

References:
Oracle Database Performance Tuning Guide 11g , Using the trcsess Utility
* Now there is a new tool, a command line utility called trcsess to help read the trace files. The trcsess command-line utility consolidates trace information from
selected trace files, based on specified criteria. The criteria include session id, client id, service name, action name and module name.

Note:
* Evolving a SQL plan baseline is the process by which the optimizer determines if non-accepted plans in the baseline should be accepted. As mentioned previously, manually loaded plans are automatically marked as accepted, so manual loading forces the evolving process. When plans are loaded automatically, the baselines are evolved using the EVOLVE_SQL_PLAN_BASELINE function, which returns a CLOB reporting its results.

SET LONG 10000 SELECT DBMS_SPM.evolve_sql_plan_baseline(sql_handle =>
'SYS_SQL_7b76323ad90440b9')
FROM dual;

* Manual plan loading can be used in conjunction with, or as an alternative to automatic plan capture. The load operations are performed using the DBMS_SPM package, which allows SQL plan baselines to be loaded from SQL tuning sets or from specific SQL statements in the cursor cache. Manually loaded statements are flagged as accepted by default. If a SQL plan baseline is present for a SQL statement, the plan is added to the baseline, otherwise a new baseline is created.

* fixed (YES/NO) : If YES, the SQL plan baseline will not evolve over time. Fixed plans are used in preference to non-fixed plans.

The output of the SQL Tuning Advisor is in the form of an advice or recommendations, along with a rationale for each recommendation and its expected benefit.
The recommendation relates to collection of statistics on objects ( D), creation of new indexes, restructuring of the SQL statement (A), or creation of a SQL profile.
You can choose to accept the recommendation to complete the tuning of the SQL statements.

Note:
* A SQL Tuning Set can be used as input to the SQL Tuning Advisor, which performs automatic tuning of the SQL statements based on other input parameters specified by the user.
* A SQL Tuning Set (STS) is a database object that includes one or more SQL statements along with their execution statistics and execution context, and could include a user priority ranking. The SQL statements can be loaded into a SQL Tuning Set from different SQL sources, such as the Automatic Workload Repository, the cursor cache, or custom SQL provided by the user.

References:
Oracle Database Performance Tuning Guide 11g , SQL Tuning Advisor
