156-315.81.20 questions and answers

The CLI utility that runs connectivity tests from a Security Gateway to an AD domain controller is test_ad_connectivity -d <domain>. This command tests the connectivity between the gateway and the
domain controller using LDAP, Kerberos, and WMI protocols. It also verifies the identity awareness configuration and shows the relevant logs. The other options are not valid commands for testing AD connectivity.

References:
Check Point Software, Getting Started, Testing Active Directory Connectivity.

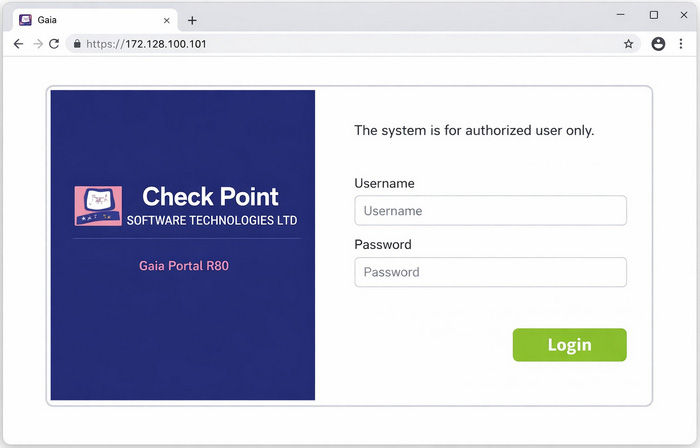

The default port for the Gaia WebUI Portal is HTTPS 443. This is the standard port for secure web communication over SSL/TLS. Changing the port may cause inconsistency with the settings on the SmartConsole and is not recommended unless necessary. To change the port, you can use the CLISH command set web ssl-port <port number> and save the configuration.

The Threat Prevention profile in Check Point R81.20 SmartConsole application allows you to enforce the following software blades: IPS, Anti-Bot, Anti-Virus, Threat Emulation, and Threat Extraction. These software blades provide comprehensive protection against various types of threats, such as network attacks, malware, ransomware, phishing, and zero-day exploits. You can configure the profile settings for each software blade, such as the action to take, the protection scope, and the exceptions.

References:
Check Point Security Expert R81 Course, Threat Prevention Administration Guide

According to the Check Point website, SmartUpdate is the application that should be used to install a contract file. A contract file contains information about the licenses and services that are purchased from Check Point. SmartUpdate can also be used to install software packages and patches on Security Gateways and Management Servers. The other applications are either not relevant or not capable of installing a contract file.

Dynamic Balancing (also known as Dynamic Split) is a performance optimization feature in Check Point that distributes incoming traffic from a single network interface across multiple SND (Secure Network Dispatcher) instances.

This feature relies on Multi-Queue NIC support, allowing different receive queues to be processed by different CPU cores, improving scalability and throughput.

Dynamic Balancing does not change the number of SNDs or firewall instances dynamically; instead, it optimizes how traffic is distributed among existing resources.

It is supported on Quantum Appliances and Open Servers (R80.40 and later), but not on Quantum Spark platforms.

The cpinfo command is a tool that collects diagnostic data from a Check Point gateway or management server. The data includes configuration files, logs, status reports, and more. The cpinfo output can be used for troubleshooting or sent to Check Point support for analysis. The -x parameter is used to get information about the specified Virtual System on a VSX gateway. A Virtual System is a virtualized firewall instance that runs on a VSX gateway and has its own security policy and objects.

References:
Check Point Security Expert R81 Course, cpinfo Utility, VSX Administration Guide

The directory /opt/CPsuite-R81/fw1/log contains the log files for the Security Gateway, such as firewall, VPN, IPS, and anti-virus logs. These log files can be viewed and analyzed using SmartConsole or SmartView. The other directories are not correct because:

Option A. The directory /opt/CPSmartlog-R81/log contains the log files for the SmartLog server, which is a separate component that indexes and searches logs from multiple Security Gateways.
Option B. The directory /opt/CPshrd-R81/log contains the log files for the shared components of the Check Point suite, such as cpwd, cpca, cpd, and cpwatchdog.
Option D. The directory /opt/CPsuite-R81/log does not exist by default and is not used for logging purposes.

References:
Logging and Monitoring R81 Administration Guide, SmartConsole R81 Help, SmartLog R81 Help, Check Point Processes and Daemons

The command cphaprob all show stat is not related to redundancy and functions. This command does not exist in ClusterXL or VRRP. The other commands are valid commands for checking the status of cluster members, interfaces, and synchronization. ClusterXL and VRRP are both high availability solutions that provide redundancy and load balancing for Check Point gateways.

References:
Check Point Security Expert R81 Course, ClusterXL Administration Guide, VRRP Administration Guide

Proxy ARP is a technique that allows a device to respond to ARP requests on behalf of another IP address. Proxy ARP is required for Manual Static NAT when the translated IP address does not belong to one of the firewall's interfaces. This is because the firewall needs to intercept the packets destined to the translated IP address and forward them to the original IP address after applying the NAT rule. Without Proxy ARP, the packets would not reach the firewall and the NAT would not work. Proxy ARP is not required for Automatic Static NAT or Automatic Hide NAT, because these types of NAT use IP addresses that belong to the firewall's interfaces. Proxy ARP is also not required for Manual Hide NAT, because this type of NAT does not change the destination IP address of the packets, only the source IP address.

References:
Check Point R81 Security Management Administration Guide, page 115

Dynamic Dispatcher dynamically distributes traffic across CPU cores based on load.

When SecureXL is enabled, all packets should be accelerated, except packets that match the following conditions: CIFS packets. SecureXL is a technology that accelerates network traffic processing by offloading intensive operations from the Firewall kernel to a dedicated SecureXL device. However, some packets cannot be accelerated by SecureXL due to various reasons, such as unsupported features, security policy settings, or protocol limitations. One example of packets that cannot be accelerated by SecureXL are CIFS packets, which are used for file sharing and access over SMB protocol. CIFS packets are not accelerated by SecureXL because they require stateful inspection by the Firewall kernel.

The fwd process on the Security Gateway sends logs to the fwd process on the Management Server via the cpm process. The cpm process is the main management process that handles database operations, policy installation, and communication with GUI clients via TCP port 190093. The other options are either incorrect or irrelevant to the log flow.

References:
Certified Security Expert (CCSE) R81.20 Course Overview, Check Point Ports Used for Communication by Various Check Point Modules

The CLISH command to change the default Gaia WebUI Portal port number is set web ssl-port <new port number>. This command will change the port that the WebUI listens on for HTTPS connections. After
changing the port, you need to save the configuration with save config and verify that the change was applied with show web ssl-port. You also need to update the Main URL in the Platform Portal section of the gateway object in SmartConsole and install the policy.

The configuration file that contains the structure of the Security Server showing the port numbers, corresponding protocol name, and status is $FWDIR/conf/fwauthd.conf. This file is used for configuring authentication services in Check Point Security Servers.

References:
Check Point documentation or training materials related to Security Server configuration.

LEA (Log Export API) uses TCP for communication, typically on port 18184.

The command to show SecureXL status is fwaccel stat. This command displays information about SecureXL acceleration, such as the number of accelerated and non-accelerated connections, the reason for non-acceleration, and the SecureXL device name and mode. The other commands are either invalid or
show different statistics.

For ClusterXL to work properly, one of the mandatory requirements is that the Magic MAC number must be unique per cluster node. The Magic MAC number is a MAC address that is used by ClusterXL to hide the physical MAC addresses of the cluster members from the network. This way, the cluster can present a single virtual MAC address to the network, and avoid ARP issues when a failover occurs. The Magic MAC number is derived from the Cluster Virtual IP address, which must also be unique per cluster.

RPM upgrade is not a valid upgrade method to R81.20. RPM upgrade is a method of upgrading from R80.20. M1 to R80.20.M2 or later, but it is not supported for upgrading to R81.20. The valid upgrade methods to R81. 20 are CPUSE upgrade, advanced upgrade, and upgrade with migration.

[Check Point Security Expert R81 Installation and Upgrade Guide], page 12.

The type of SecureXL template that is not valid among the options is Deny template. SecureXL templates are pre-allocated data structures that store information about connections that match certain criteria. They are used to accelerate the processing of packets that belong to those connections. The valid types of SecureXL templates are Accept, Drop, NAT, and Crypt. The Accept template is used for connections that are allowed by the Firewall policy. The Drop template is used for connections that are blocked by the Firewall policy. The NAT template is used for connections that require Network Address Translation. The Crypt template is used for connections that require encryption or decryption.

References:
[SecureXL Templates]

The path to monitor the compliance status of the Check Point R81.20 based management is Logs &
Monitor > New Tab > Open compliance View. Compliance View is a feature that allows administrators to monitor and assess the compliance level of their Check Point products and security policies based on best practices and industry standards. Compliance View provides a dashboard that shows the overall compliance status, compliance score, compliance trends, compliance issues, compliance reports, and compliance blades for different security aspects, such as data protection, threat prevention, identity awareness, etc. To access Compliance View in R81.20 SmartConsole, administrators need to go to Logs
& Monitor > New Tab > Open compliance View. The other options are either incorrect or not available in
R81.20.

A star community is a VPN topology where one or more satellites connect to a center gateway. The center gateway can be a Security Gateway or a Security Management Server. The VPN routing option determines how the traffic is routed between the satellites and the center, and between the satellites themselves. There are three VPN routing options available in a star community: To center only: The satellites can only communicate with the center gateway, and not with each other or with any other VPN targets. This option is useful for remote access clients that only need to access resources on the center gateway. To center, or through the center to other satellites, to Internet and other VPN targets: The satellites can communicate with the center gateway, and also with other satellites, Internet hosts, and other VPN targets through the center gateway. This option is useful for branch offices that need to access resources on the center gateway, as well as on other branch offices, Internet hosts, and other VPN targets.
To center and to other satellites through center: The satellites can communicate with the center gateway, and also with other satellites through the center gateway. However, they cannot communicate with Internet hosts or other VPN targets. This option is useful for branch offices that need to access resources on the center gateway and on other branch offices, but not on Internet hosts or other VPN targets. Therefore, the options A (To satellites through center only) and D (To center only) are not valid VPN routing options in a star community.

References:
1: Remote Access VPN R81.20 Administration Guide - Check Point Software, page 13
2: Gaia R81.20 Administration Guide - Check Point Software, page 1030

Security Checkup Summary can be easily conducted within Views. Views is a feature in SmartConsole that allows you to create customized dashboards and reports based on various security data sources, such as logs, events, audit trails, and more. You can use Views to perform a Security Checkup Summary, which is a comprehensive analysis of your network security posture and potential risks. You can use predefined templates or create your own views to generate the summary.

References:
Check Point Security Expert R81 Course, Views Administration Guide

The correct syntax to import a host object using mgmt_cli is mgmt_cli add host name <name> ip-address
<ip-address> --format <format>1. The name and ip-address parameters are mandatory, while the format parameter is optional and can be either json or txt. The other options are incorrect because they either use wrong parameters, wrong hyphens, or wrong object types.

References:
1: Check Point Resource Library2

The NAT rules that are prioritized first are Manual/Pre-Automatic NAT. NAT stands for Network Address Translation, and it is a feature that allows Security Gateways to modify the source or destination IP addresses or ports of packets that pass through them. NAT rules are the rules that define how NAT is applied to traffic that matches certain criteria. There are three types of NAT rules: Manual/Pre-Automatic NAT, Automatic NAT, and Manual/Post-Automatic NAT. Manual/Pre-Automatic NAT rules are the rules that are manually created by administrators and placed before the automatic NAT rules in the rulebase.
These rules have the highest priority and are processed first by the Security Gateway. Automatic NAT rules are the rules that are automatically generated by the Security Gateway based on the NAT properties of network objects. These rules have the second highest priority and are processed after the manual/pre-automatic NAT rules. Manual /Post-Automatic NAT rules are the rules that are manually created by administrators and placed after the automatic NAT rules in the rulebase. These rules have the lowest priority and are processed last by the Security Gateway.

Gateway API is NOT an example of a Check Point API. Check Point API is a general term that refers to various application programming interfaces (APIs) that allow external applications to interact with Check Point products and services using standard methods such as HTTP(S) requests and JSON objects. There are several types of Check Point APIs, such as Management API, Threat Prevention API, OPSEC SDK, etc. Management API is an API that allows external applications to configure, manage, and monitor Check Point management server using web services. Threat Prevention API is an API that allows external applications to send files or URLs to Check Point Threat Prevention products for scanning and analysis using web services. OPSEC SDK is an API that allows external applications to integrate with Check Point OPSEC products using C/C++ libraries and protocols. Gateway API is not a valid or existing type of Check Point API.

The command fwaccel off disables SecureXL, which is often required for troubleshooting.

The kind of information that you would expect to see using the sim affinity command is network interfaces and core distribution used for CoreXL. Sim affinity is a command that allows administrators to view and modify the CPU core affinity of network interfaces and SecureXL instances. CoreXL is a technology that improves the performance of the Security Gateway by using multiple cores to handle concurrent connections. The sim affinity command can show which network interfaces and SecureXL instances are bound to which CPU cores, and allow administrators to change the affinity settings.

High alert is not an alert option in Check Point. Alert options are ways to notify the administrator or other parties when a security event occurs. The available alert options are SNMP, Mail, User defined alert, Log, Popup alert, and User alert.

References:
Training & Certification | Check Point Software, Check Point Resource Library

The WebUI can be used to manage user accounts and assign privileges to users. It can also add users to your Gaia system and edit the home directory of the user. However, it cannot assign user rights to their home directory in the Security Management Server.

References:
Check Point Resource Library, page 3.

The port used for SmartConsole to connect to the Security Management Server is CPMI port 18191/TCP.
CPMI stands for Check Point Management Interface, which is a proprietary protocol that enables secure communication between the SmartConsole and the Security Management Server. CPMI uses SSL encryption and authentication to protect the data exchange.

References:
Check Point Security Expert R81 Course, SK52421 - Ports used by Check Point software

The WebUI offers three methods for downloading hotfixes via CPUSE: Automatic, Manually, and Scheduled. Force override is not a valid method for downloading hotfixes. Force override is an option that can be used when installing a hotfix to override the compatibility check and force the installation of the hotfix.

References:
CPUSE - Gaia Software Updates (including Gaia Software Updates Agent)

The statement that only cluster members running on the same OS platform can be synchronized is false.
Cluster members can be synchronized even if they run on different OS platforms, as long as they have the same Check Point version and hotfixes installed. The other statements are true. The state of connections using resources is maintained in a Security Server, so their connections cannot be synchronized. In the case of a failover, accounting information on the failed member may be lost despite a properly working synchronization. Client Authentication or Session Authentication connections through a cluster member will be lost if the cluster member fails.

References:
R81 ClusterXL Administration Guide, page 9-10 [R81 Security Gateway Architecture], page 23

When a packet arrives at the gateway, the gateway checks it against the rules in the top Policy Layer, sequentially from top to bottom, and enforces the first rule that matches the packet. The order of rule enforcement depends on the action of the matching rule. If the action is Accept, the gateway allows the packet to pass through the gateway, but also continues to check rules in the next Policy Layer down. If the action is Drop, Reject, or Encrypt, the gateway applies that action to the packet and stops checking rules in that Policy Layer and any subsequent Policy Layers. If there is no matching rule in a Policy Layer, the gateway applies the Implicit Clean-up Rule for that Policy Layer, which is usually Drop.

The benefit of fw monitor over tcpdump is that with fw monitor, you can see the inspection points, which cannot be seen in tcpdump. Inspection points are the locations in the firewall kernel where packets are inspected by the security policy and other software blades. Fw monitor allows you to capture packets at different inspection points and see how they are processed by the firewall. Tcpdump, on the other hand, is a generic packet capture tool that only shows the packets as they enter or leave the network interface.

References:
Check Point Security Expert R81 Course, fw monitor, tcpdump

SmartEvent Security Checkups can be run from the Reports activity in Logs and Monitor. A Security Checkup is a report that analyzes network traffic and security events and provides recommendations for improving security posture. To run a Security Checkup, go to Logs & Monitor > Reports > New Report >
Security Checkup. The other activities in Logs and Monitor do not have the option to run a Security Checkup.

According to the Check Point R81.20 documentation, the central deployment feature allows you to install up to 10 packages simultaneously on multiple gateways.

According to the Check Point R81 training course, the Proxy ARP feature for Manual NAT in R81.20 requires the configuration of the local.arp file on the Security Gateway. This file contains the mapping of IP addresses to MAC addresses for NATed hosts. The other options are either incorrect or irrelevant.

References:
Certified Security Expert (CCSE) R81.20 Course Overview

In the Check Point Security Management Architecture, both the Security Management Server and Security Gateway can store logs. The Security Management Server stores logs related to management activities, while the Security Gateway stores logs related to network traffic.

References:
Check Point Resource Library, page 3.

SandBlast appliances can be deployed in the following modes:

Option C: Inline/prevent or detect SandBlast appliances can be deployed in an inline mode where they actively inspect and prevent or detect malicious traffic. In this mode, the appliance sits in the network traffic path and can take actions to block or detect threats in real-time.

References:
Check Point Certified Security Expert R81 Study Guide, Check Point documentation on SandBlast.

How long may verification of one file take for SandBlast Threat Emulation? Verification of one file may take up to 3 minutes for SandBlast Threat Emulation. SandBlast Threat Emulation is a software blade that provides protection against malicious files by emulating them in a virtual sandbox and analyzing their behavior. The emulation time depends on various factors, such as file size, file type, emulation mode, etc.
The default emulation time limit is 180 seconds, but it can be changed in the Threat Prevention policy settings.

References:
[R81 Threat Prevention Administration Guide], page 39.

The correct command to store the GAIA configuration in a file is save configuration <filename>. This will create a file with the current system level configuration in the home directory of the current user. The other commands are incorrect because they either do not exist or do not save the configuration to a file.

References:
1: Backing up Gaia system level configuration (https://supportcenter.checkpoint.com/supportcenter)
/portal?eventSubmit_doGoviewsolutiondetails=&solutionid=sk102234)

The Check Point daemon that monitors the other daemons is cpwd (Check Point Watchdog). It is responsible for monitoring the health and status of various Check Point daemons and processes running on the Security Gateway. If any daemon or process stops responding or encounters an issue, cpwd can restart it to ensure the continued operation of the Security Gateway.

References:
Check Point Certified Security Expert (CCSE) R81 documentation and learning resources.

How many users can have read/write access in Gaia at one time? Only one user can have read/write access in Gaia at one time. This is to prevent conflicts and inconsistencies in the configuration changes made by different users. If another user tries to login with read/write access while a user is already logged in, they will receive a warning message and will be given the option to either login with read-only access or force the other user to logout.

The two Identity Awareness daemons that are used to support identity sharing are Policy Decision Point (PDP) and Policy Enforcement Point (PEP). PDP is a daemon that runs on Security Gateways that acquire identities from various sources, such as AD Query, Identity Agent, Captive Portal, etc. PEP is a daemon that runs on Security Gateways that enforce the security policy based on identities received from PDPs.

Identity sharing is a feature that allows PDPs to share identities with other PDPs or PEPs in different gateways or domains.

[Check Point R81 Identity Awareness Administration Guide]

Log Consolidator is NOT a SmartEvent component. SmartEvent is a unified security event management solution that provides visibility, analysis, and reporting of security events across multiple Check Point products. SmartEvent consists of three main components: SmartEvent Server, Correlation Unit, and Log Server. SmartEvent Server is responsible for storing and displaying security events in SmartConsole and SmartEventWeb. Correlation Unit is responsible for collecting and correlating logs from various sources and generating security events based on predefined or custom scenarios. Log Server is responsible for receiving and indexing logs from Security Gateways and other Check Point modules. Log Consolidator is not a valid component or blade of SmartEvent.

The component that is not required to communicate with the Web Services API is the API key. The Web Services API uses a session ID token for authentication, which is obtained by sending a login request with a valid username and password. The other components are required for sending requests and receiving responses from the Web Services API. The content-type specifies the format of the data being sent or received, such as JSON or XML. The request payload contains the data and parameters for the API call, such as command name, object name, etc.

References:
[Web Services API Reference Guide]

The correct syntax for adding a host object using GAiA Management CLI (mgmt_cli) is:
mgmt_cli add host name "emailserver1" ip-address 10.50.23.90

The mgmt_cli tool is the official Check Point CLI utility used to manage objects on the Security Management Server in R80 and later versions. The parameters must follow the exact structure:

"name" specifies the object name

"ip-address" specifies the IPv4 address

The other options are incorrect due to invalid parameter names or missing required syntax (for example, "address" is not a valid parameter, and missing object name values).

Threat Extraction is a software blade that always delivers a file to user. Threat Extraction removes or sanitizes the active content from the files and converts them to PDF format, which is safer and more compatible. Threat Extraction can also work together with Threat Emulation to provide both clean and original files to the users. Threat Extraction works on MS Office, PDF, and archive files, but not on executables. Threat Extraction can take up to 3 minutes to complete, depending on the file size and complexity.

References:
Check Point Security Expert R81 Course, Threat Extraction Administration Guide

Multiple administrators can connect to a Security Management Server at the same time. Each administrator has their own username and works in a session that is independent of other administrators.
This allows for collaboration and simultaneous management tasks by different administrators.

References:
Check Point Certified Security Expert (CCSE) R81 documentation and learning resources.

SecureXL templates are a mechanism to accelerate the rate of connection establishment by grouping connections that match a particular service and whose sole differentiating element is the source port.
SecureXL templates enable even the very first packets of a TCP handshake to be accelerated, without waiting for the Firewall kernel to create a connection entry. The first packets of the first connection on the same service will be forwarded to the Firewall kernel, which will then create a template of the connection.
The template will contain all the relevant information for the connection, such as source and destination IP addresses, destination port, NAT information, policy decision, etc. The template will be used by SecureXL to handle subsequent connections on the same service, without involving the Firewall kernel. This reduces the CPU load and increases the throughput. There are three types of SecureXL templates: Accept, Drop, and NAT. Accept templates are used for connections that are allowed by the Firewall policy. Drop templates are used for connections that are blocked by the Firewall policy. NAT templates are used for connections that require NAT translation. Deny templates are not a valid type of SecureXL template.

References:
SecureXL NAT Templates in R80.20 and lower, Part 3 - SecureXL, Security Gateway Performance
Optimization - Part 5 - SecureXL

The pre-defined Permission Profile that should be assigned to an administrator that requires full access to audit all configurations without modifying them is Read Only All. This profile grants read-only access to all features and blades in SmartConsole, including logs and reports. This profile is suitable for auditors who need to review the security policy and settings, but not change them.

References:
R81 Security Management Administration Guide, page 57.

The lock symbol in the left column of the rule means that another user has locked the rule for editing. This is to prevent multiple users from editing the same rule at the same time and causing conflicts.

https://sc1.checkpoint.com/documents/R81/WebAdminGuides/EN/CP_R81_ThreatPrevention_AdminGuide/Topics-TP-Policy/TP-Policy-Edit-Rules.htm

The FWD daemon uses TCP port 256 to do a Full Synchronization between gateway cluster members.
This port is also used for other synchronization types, such as Delta Synchronization and Accelerated Synchronization. The FWD daemon is responsible for synchronizing the connections table, NAT table, and VPN keys between cluster members.

ClusterXL Administration Guide, SK25977 - Ports Used by Check Point Software

The difference between an event and a log is that a log entry becomes an event when it matches any rule defined in Event Policy. A log entry is a record of a network activity that is generated by a Security Gateway or a Management Server. An event is a log entry that meets certain criteria and triggers an action or a notification. The other options are either not true or not accurate definitions of events and logs.

References:
Check Point R81 Logging and Monitoring Administration Guide

The fwaccel stat command displays the status of SecureXL, and its enabled templates and features. The other commands are either incorrect or incomplete.

References:
[SecureXL Commands]

Main Mode in IKEv1 uses six packets for negotiation. Main Mode is the default mode for IKE phase1, which establishes a secure channel between the peers. Main Mode performs the following steps: The peers exchange their security policies and agree on a common set of parameters. The peers generate a shared secret key using the Diffie-Hellman algorithm. The peers authenticate each other using pre-shared keys, digital signatures, or public key encryption. Main Mode is partially encrypted, from the point at which the shared DH key is known to both peers. Main Mode provides more security than Aggressive Mode, which uses only three packets for negotiation, but is faster and simpler.

References:
Check Point gateways always send main IP address as IKE Main Mode ID - Check Point Software, IPsec and IKE - Check Point Software

In R81, more than one administrator can login to the Security Management Server with write permission at the same time. This feature is enabled by default and allows concurrent administration of the security policy. Every administrator works in a session that is independent of the other administrators. Changes made by one administrator are not visible to others until they are published. Administrators can also lock objects to prevent others from editing them until they are unlocked.

Security Management Administration Guide, page 43.

A clientless remote access VPN deployment is used to provide remote users with secure access to internal corporate resources by authenticating the user through an internet browser. A clientless remote access VPN does not require any software installation or configuration on the user's device. Instead, it uses a web-based portal that acts as a proxy between the user and the corporate resources. The user can access web applications and services through the portal using a standard web browser that supports SSL/TLS encryption. The portal can also provide single sign-on (SSO) capabilities for SAML-enabled applications. A clientless remote access VPN is suitable for scenarios where users need to access mainly web-based resources from unmanaged devices or devices that cannot run VPN clients.

The other options are incorrect because:

A client-based remote access VPN deployment is used to provide remote users with secure access to internal corporate resources by installing VPN client software on the user's device. A client-based remote access VPN requires software installation and configuration on the user's device. It uses IPsec or SSL/TLS protocols to create a secure tunnel between the user's device and the VPN gateway. The user can access any type of resource through the tunnel using any application that supports TCP/IP protocols. A client-based remote access VPN is suitable for scenarios where users need to access various types of resources from managed devices or devices that can run VPN clients.

A clientless direct access deployment is not a valid term for a VPN deployment. Direct Access is a feature of Windows Server that allows remote users to securely access internal corporate resources without using a VPN connection. Direct Access uses IPv6 transition technologies and IPsec protocols to create a secure connection between the user's device and the Direct Access server. The user can access any type of resource through the connection using any application that supports TCP/IP protocols. Direct Access requires software installation and configuration on both the user's device and the Direct Access server.

Direct Access is not a term for a VPN deployment, but a feature of Windows Server that allows remote users to securely access internal corporate resources without using a VPN connection. Direct Access uses IPv6 transition technologies and IPsec protocols to create a secure connection between the user's device and the Direct Access server. The user can access any type of resource through the connection using any application that supports TCP/IP protocols. Direct Access requires software installation and configuration on both the user's device and the Direct Access server.

A new license should be generated and installed in all of the following situations except when the IP address of the Security Management or Security Gateway has changed. This is because Check Point licenses are not bound to IP addresses, but to other parameters such as MAC addresses, CPU IDs, or hostnames. Therefore, changing the IP address of a licensed machine does not affect the validity of the license. However, changing other parameters, such as replacing a network card or renaming a machine, may require a new license. Additionally, when the existing license expires or the license is upgraded to a higher level or a different package, a new license is needed.

Suspicious Activity Rules Solution Suspicious Activity Rules is a utility integrated into SmartView Monitor that is used to modify access privileges upon detection of any suspicious network activity (for example, several attempts to gain unauthorized access). The detection of suspicious activity is based on the creation of Suspicious Activity rules. Suspicious Activity rules are Firewall rules that enable the system administrator to instantly block suspicious connections that are not restricted by the currently enforced security policy. These rules, once set (usually with an expiration date), can be applied immediately without the need to perform an Install Policy operation.

The benefit of Manual NAT over Automatic NAT is that you have full control over the priority of the NAT rules. Manual NAT allows you to create NAT rules that are independent of the security policy and specify the order in which they are applied. Automatic NAT creates NAT rules based on the objects' NAT properties and places them according to predefined criteria. The other options are not benefits of Manual
NAT over Automatic NAT.

References:
Check Point Software, Getting Started, NAT Rule Base.

Tcpdump is a tool that captures and analyzes network traffic on a given interface. It can be used to troubleshoot connectivity or performance issues, or to inspect the content of the packets. To use tcpdump, you need to access the Security Gateway in expert mode and run tcpdump -i <interface> [options] [filter] .
You can specify various options and filters to customize the output, such as source or destination IP address, port number, protocol, packet size, etc. You can also save the captured packets to a file for later analysis by using the -w option. For more information about tcpdump, you can run man tcpdump or visit the official website.

The command cphaconf set_ccp multicast configures CCP to use multicast communication between cluster members.

When an encrypted packet is received by a Check Point Security Gateway, it is decrypted according to the security policy. The security policy defines the rules and settings for encryption and decryption of traffic, such as the encryption algorithm, the encryption domain, the pre-shared secret or certificate, etc. The security policy is enforced by the Firewall kernel, which is responsible for decrypting the packets before passing them to the inbound chain for further inspection. The inbound chain consists of various inspection modules that apply security checks and actions on the decrypted packets. The outbound chain is the reverse process, where the packets are inspected and then encrypted according to the security policy before being sent out.

References:
Check Point Firewall Security Solution, Check Point R81 Cyber Security Platform, Check Point VPN
Administration Guide R81

The cpwd (Check Point WatchDog) process monitors other daemons and restarts them if they fail, ensuring system stability.

There are two R77.30 Security Gateways in the Firewall Cluster. They are named FW_A and FW_B. The cluster is configured to work as HA (High availability) with default cluster configuration. FW_A is configured to have higher priority than FW_B. FW_A was active and processing the traffic in the morning. FW_B was standby. Around 1100 am, its interfaces went down and this caused a failover. FW_B became active. After an hour, FW_A's interface issues were resolved and it became operational. When it re-joins the cluster, it will not become active automatically, since 'maintain current active cluster member' option on the cluster object properties is enabled by default. This option prevents a failback to the original active member after a failover, unless the current active member fails or is manually switched over. This option provides stability and avoids unnecessary failovers.

References:
R77 ClusterXL Administration Guide, page 23.
